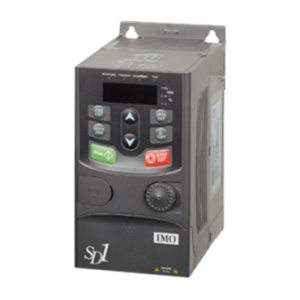

Variable frequency drive SD1 Single/3-phase
Variable frequency drive single/3-phase
Power of 0.4 - 2.2 KW with input STO (security integrated)
The variable frequency drive (VFD) enables to transform 220V single-phase in 3-phase, in order to use a motor in 220V/400V 3-phase (connected in delta) on a standard power outlet.
Choose the model of VFD depending on the engine power (from 0.4 Kilowatt to 2.2 kW)
The VFD also enables to vary the frequency of the supply voltage (50 Hz), and then to vary the base speed of the electric induction motor (button on the front)
This micro VFD SD1 (IMO) is made for uses where the economical criteria is dominant: filter integrated in standard, potentiometer on front panel, DIN rail mouting, forced ventilation, PC setup software.
Characteristics:
-1 security input STO integrated (SIL2/SIL3-model dependant).
- torque vector control
- DIN rail mountable (<2.2kW)
- 1 input HDI, 2 analogue inputs, 2 output relays, transistor output, 1 to 2 analogue outputs, 4 to 5 digital inputs, PNP/NPN selectable
- In Built Modbus RTU / RS485
- PID control as standard
- Up to 150% starting torque
- DC injection braking
- CE, RoHD & Reach Compliant, TUV Approved, UL/cUL
- 2-year warranty*
* The warranty only applies if the VFD is used in an electrical cabinet IP55.
The VFD also enables to vary the frequency of the supply voltage (50 Hz), and then to vary the base speed of the electric induction motor (button on the front)
This micro VFD SD1 (IMO) is made for uses where the economical criteria is dominant: filter integrated in standard, potentiometer on front panel, DIN rail mouting, forced ventilation, PC setup software.
Characteristics:
-1 security input STO integrated (SIL2/SIL3-model dependant).
- torque vector control
- DIN rail mountable (<2.2kW)
- 1 input HDI, 2 analogue inputs, 2 output relays, transistor output, 1 to 2 analogue outputs, 4 to 5 digital inputs, PNP/NPN selectable
- In Built Modbus RTU / RS485
- PID control as standard
- Up to 150% starting torque
- DC injection braking
- CE, RoHD & Reach Compliant, TUV Approved, UL/cUL
- 2-year warranty*
* The warranty only applies if the VFD is used in an electrical cabinet IP55.
Reference
kW
Cv
Input current
(A)
(A)
Output current
(A)
(A)
Protection
(A)
(A)
Size
H x W x D (mm)
H x W x D (mm)
SD1_2A_21
0.4
0.5
6.5
2.5
10
160x123.5x80
SD1_4A_21
0.75
1
9.3
4.2
16
160x123.5x80
SD1_7A_21
1.5
2
15.7
7.5
25
185x140.5x80
SD1_10A_21
2.2
3
24
10
40
185x140.5x80
Online support
The different monitoring modes for inverters Braking and resistance on an inverter How to install an inverter on a woodworking machine? How to protect your inverter? Lathe tutorial How to do a multi-speed control on an inverter? How to choose a single/3-phase inverter? Is it possible to connect an inverter on several motors? The different startup types for 3-phase induction motors? What is a PID controller?
Videos
| Power kW | 0.4 kW 0.75 kW 1.5 kW 2.2 kW |
| Combinations | Power kW | Reference | Stock | Price | Add to cart |
|
Power kW :
0.4 kW
Reference : SD1_2A_21
|
0.4 kW |
SD1_2A_21 |
Available now Stock : 1 |
€182.56 Tax excl. €173.43 Tax excl. - 5% |
€182.56 Tax excl. |
|
Power kW :
0.75 kW
Reference : SD1_4A_21
|
0.75 kW |
SD1_4A_21 |
Available now Stock : 1 |
€189.44 Tax excl. €179.97 Tax excl. - 5% |
€189.44 Tax excl. |
|
Power kW :
1.5 kW
Reference : SD1_7A_21
|
1.5 kW |
SD1_7A_21 |
Available now Stock : 1 |
€251.48 Tax excl. €238.91 Tax excl. - 5% |
€251.48 Tax excl. |
|
Power kW :
2.2 kW
Reference : SD1_10A_21
|
2.2 kW |
SD1_10A_21 |
Available now Stock : 2 |
€263.69 Tax excl. €250.51 Tax excl. - 5% |
€263.69 Tax excl. |
