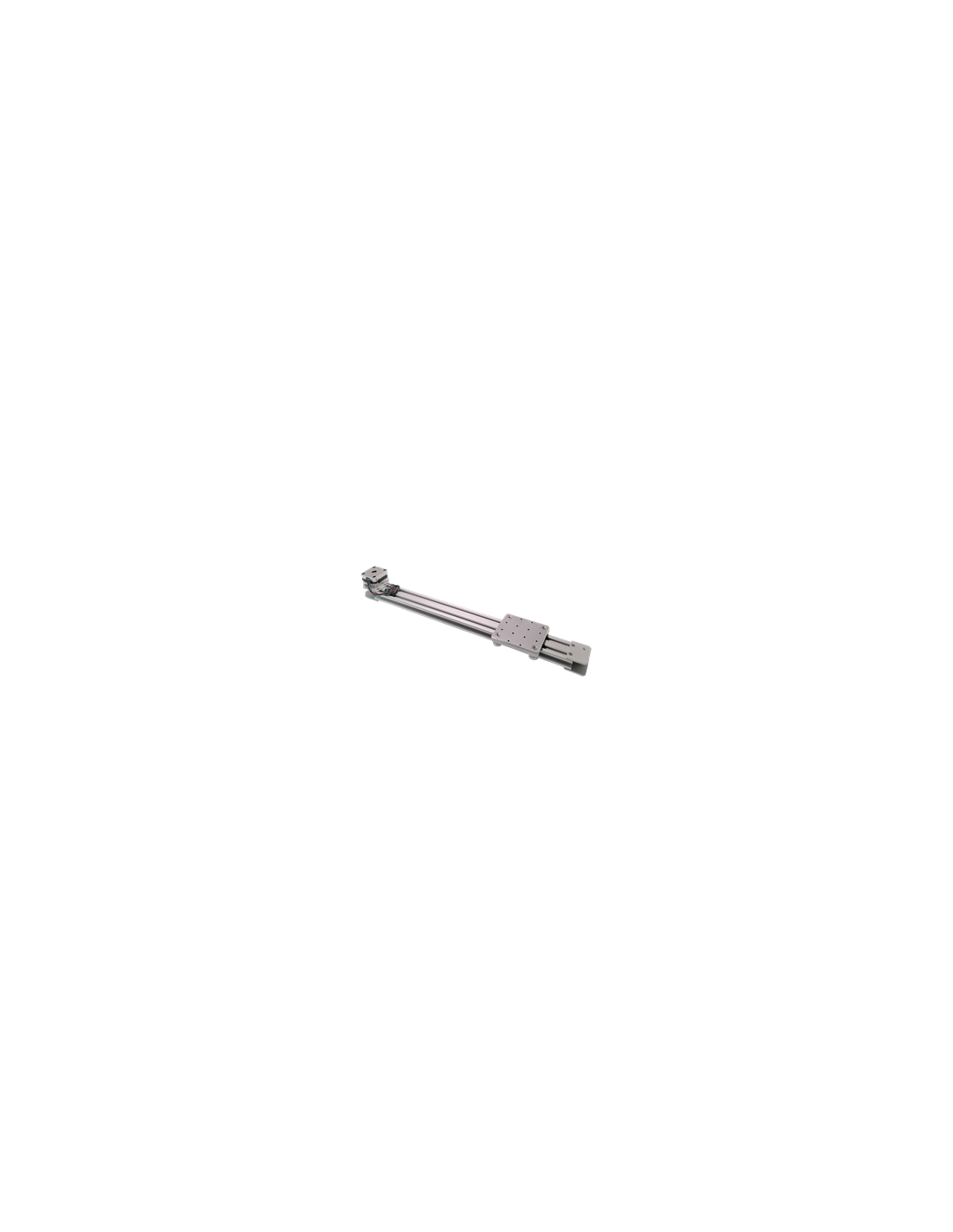

Linear axis with stepper motor Nema 17

Linear axis belt drive with stepper motor integrated. With working stroke of 300mm to 1000mm.

Amperage stepper motor

Size

Reference SLN-0300-L25

Pre-order

€259.00 -5%
€246.05 Excl. tax

Linear axis with stepper motor Nema 17:

Linear Modules LML consist of an anodized aluminum frame with integrated belt drive and a stepper motor.
With working stroke from 300mm to 1000mm, these linear axes are made for moving small loads while having a control on the movement.
Easy to install, this system will find a place easily with your solution.

Technical characteristics:
- Different lengths (300mm to 1000mm)
- Nominal force on the carriage Fx 40 N
- Nominal linear speed of 100 mm/s (at a speed of 150 RPM)
- Stepper motor Nema17

Documentation

documentation technic-achat Technical datasheet

Softwares & 3D

fichier 3D technic-achat 3D File

Online support

aide en ligne Technic-Achat Which actuators to choose for a linear movement?
How to create a linear movement with stepper motors?

Videos

Amperage stepper motor	0.4 A - Lower mounting 0.4 A - Upper mounting 1.7 A - Lower mounting 1.7 A - Upper mounting
Size	300mm 500mm 1000mm

Combinations	Amperage stepper motor	Size	Reference	Stock	Price	Add to cart
Amperage stepper motor : 0.4 A - Lower mounting Size : 300mm Reference : SLN-0300-U25 Stock : 1	0.4 A - Lower mounting	300mm	SLN-0300-U25	Available now Stock : 1	€259.00 Tax excl. €246.05 Tax excl. - 5%	€259.00 Tax excl. €246.05 Tax excl. (- 5%)
Amperage stepper motor : 0.4 A - Lower mounting Size : 1000mm Reference : SLN-1000-U25 Stock : 0	0.4 A - Lower mounting	1000mm	SLN-1000-U25	Available later	€276.20 Tax excl. €262.39 Tax excl. - 5%	€276.20 Tax excl. €262.39 Tax excl. (- 5%)
Amperage stepper motor : 0.4 A - Upper mounting Size : 300mm Reference : SLN-0300-L25 Stock : 0	0.4 A - Upper mounting	300mm	SLN-0300-L25	Available later	€259.00 Tax excl. €246.05 Tax excl. - 5%	€259.00 Tax excl. €246.05 Tax excl. (- 5%)
Amperage stepper motor : 1.7 A - Lower mounting Size : 300mm Reference : SLN-0300-U47 Stock : 1	1.7 A - Lower mounting	300mm	SLN-0300-U47	Available now Stock : 1	€259.00 Tax excl. €246.05 Tax excl. - 5%	€259.00 Tax excl. €246.05 Tax excl. (- 5%)
Amperage stepper motor : 1.7 A - Lower mounting Size : 500mm Reference : SLN-0500-U47 Stock : 1	1.7 A - Lower mounting	500mm	SLN-0500-U47	Available now Stock : 1	€269.40 Tax excl. €255.93 Tax excl. - 5%	€269.40 Tax excl. €255.93 Tax excl. (- 5%)
Amperage stepper motor : 1.7 A - Upper mounting Size : 300mm Reference : SLN-0300-L47 Stock : 1	1.7 A - Upper mounting	300mm	SLN-0300-L47	Available now Stock : 1	€259.00 Tax excl. €246.05 Tax excl. - 5%	€259.00 Tax excl. €246.05 Tax excl. (- 5%)
