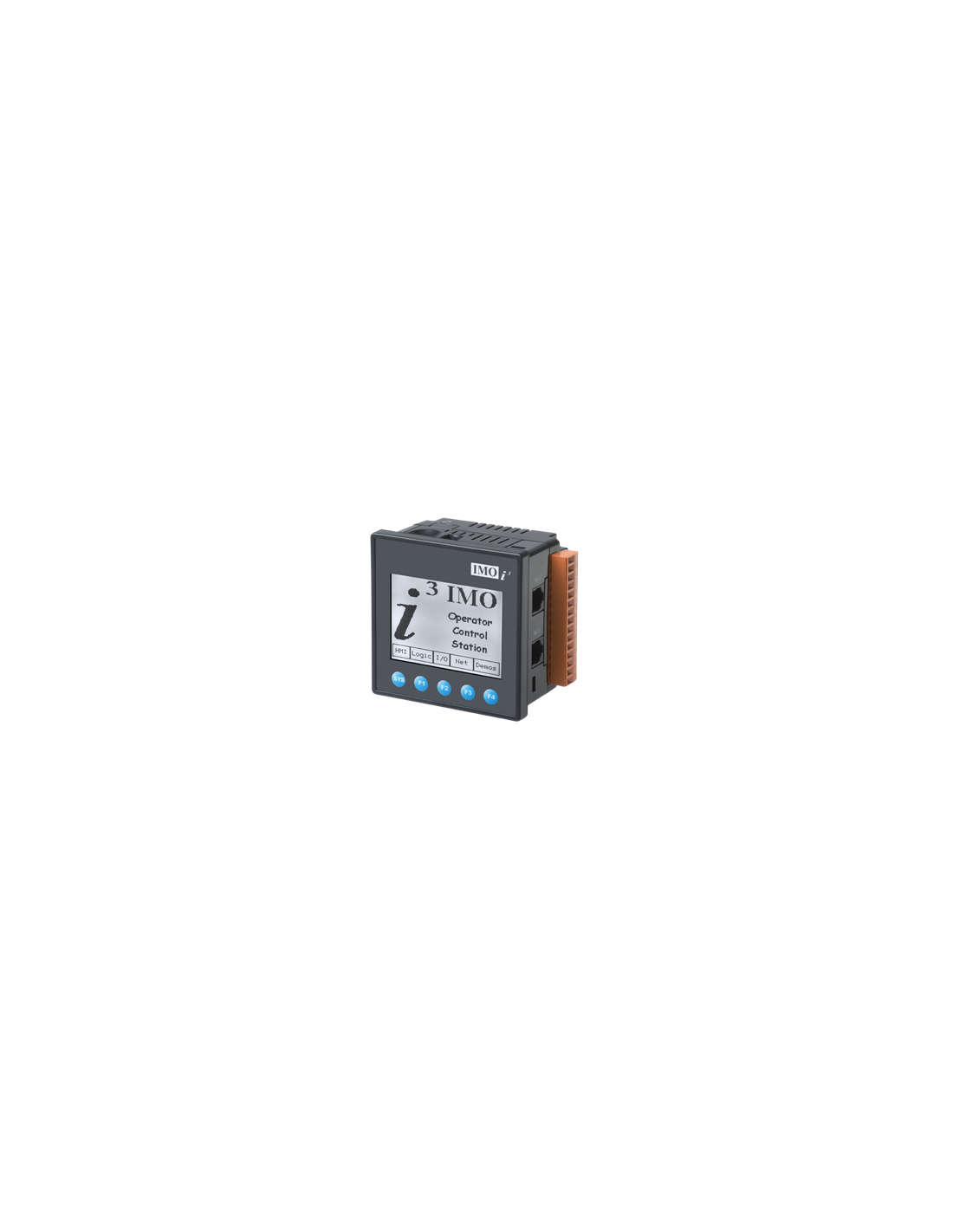

Intelligent control station IMO I3B touch screen blue backlight 160x128

Programmable intelligent control station I3 with touch screen and blue backlight

Automation system inputs

Automation system outputs

Reference I3BX12Y10D03SEHF

Pre-order

€542.96 -5%
€515.81 Excl. tax

Programmable intelligent control station all included: Human-Machine Interface and communication bus in the same box.

- LCD display 160x128
- Programmable function keys.
- Up to 24 digital inputs and 4 analogue inputs (internal).
- Up to 16 digital outputs and 2 analogue outputs (internal).
- Expandable Inputs/Outputs.
- Fast counter, timer.
- Step by step motor control, PID control, modem interface.
- Alarm function, real time clock.
- Supply 10-30 VDC
- 2 serial communication ports (RS232/RS485).
- 1 Ethernet port
- 1 CAN port
- MicroSD card slot

I3BX12Y...

Dig.
Inputs
(DC In)

Transistor TOR Outputs
(DC Out)

TOR relay Output
(Relays)

Fast
Inputs
(HS In)

Fast
Outputs
(PWM)

Ana. Inputs
4-20 mA/0-10 V

Ana. Inputs
4-20 mA/0-10 V
PT100

Ana. Outputs

Doc

10D03-SEHF

4 (12 Bits)

20B05-SEHF

2 (12 Bits)

13C14-SEHF

2 (14 Bits)

2 (12 Bits)

10E24-SEHF

6 (14/17 Bits)

4 (12 Bits)

Documentation

documentation technic-achat Technical datasheet I3BX
Brochure
User manual
Web server I3RMI

Certificates

certificat technic-achat CE Certificate

Softwares & 3D

Online support

aide en ligne Technic-Achat Application examples I3 programme
Using an intelligent relay remotely
Reliable user server communication with protocol Ethernet/IP
Hydroelectric power plant

Videos

Automation system inputs	12 Di +6 Ana 12 Di +2 Ana 12 Di +4 Ana 24 Di +2 Ana
Automation system outputs	6 Rel 12 Do+2 Ana 12 Do +4 Ana 16 Do

Combinations	Automation system inputs	Automation system outputs	Reference	Stock	Price	Add to cart
Automation system inputs : 12 Di +6 Ana Automation system outputs : 12 Do +4 Ana Reference : I3BX12Y10E24SEHF Stock : 0	12 Di +6 Ana	12 Do +4 Ana	I3BX12Y10E24SEHF	Available later	€968.23 Tax excl. €919.82 Tax excl. - 5%	€968.23 Tax excl. €919.82 Tax excl. (- 5%)
Automation system inputs : 12 Di +2 Ana Automation system outputs : 12 Do+2 Ana Reference : I3BX12Y13C14SEHF Stock : 0	12 Di +2 Ana	12 Do+2 Ana	I3BX12Y13C14SEHF	Available later	€707.77 Tax excl. €672.38 Tax excl. - 5%	€707.77 Tax excl. €672.38 Tax excl. (- 5%)
Automation system inputs : 12 Di +4 Ana Automation system outputs : 6 Rel Reference : I3BX12Y10D03SEHF Stock : 0	12 Di +4 Ana	6 Rel	I3BX12Y10D03SEHF	Available later	€542.96 Tax excl. €515.81 Tax excl. - 5%	€542.96 Tax excl. €515.81 Tax excl. (- 5%)
Automation system inputs : 24 Di +2 Ana Automation system outputs : 16 Do Reference : I3BX12Y20B05SEHF Stock : 0	24 Di +2 Ana	16 Do	I3BX12Y20B05SEHF	Available later	€643.90 Tax excl. €611.71 Tax excl. - 5%	€643.90 Tax excl. €611.71 Tax excl. (- 5%)
