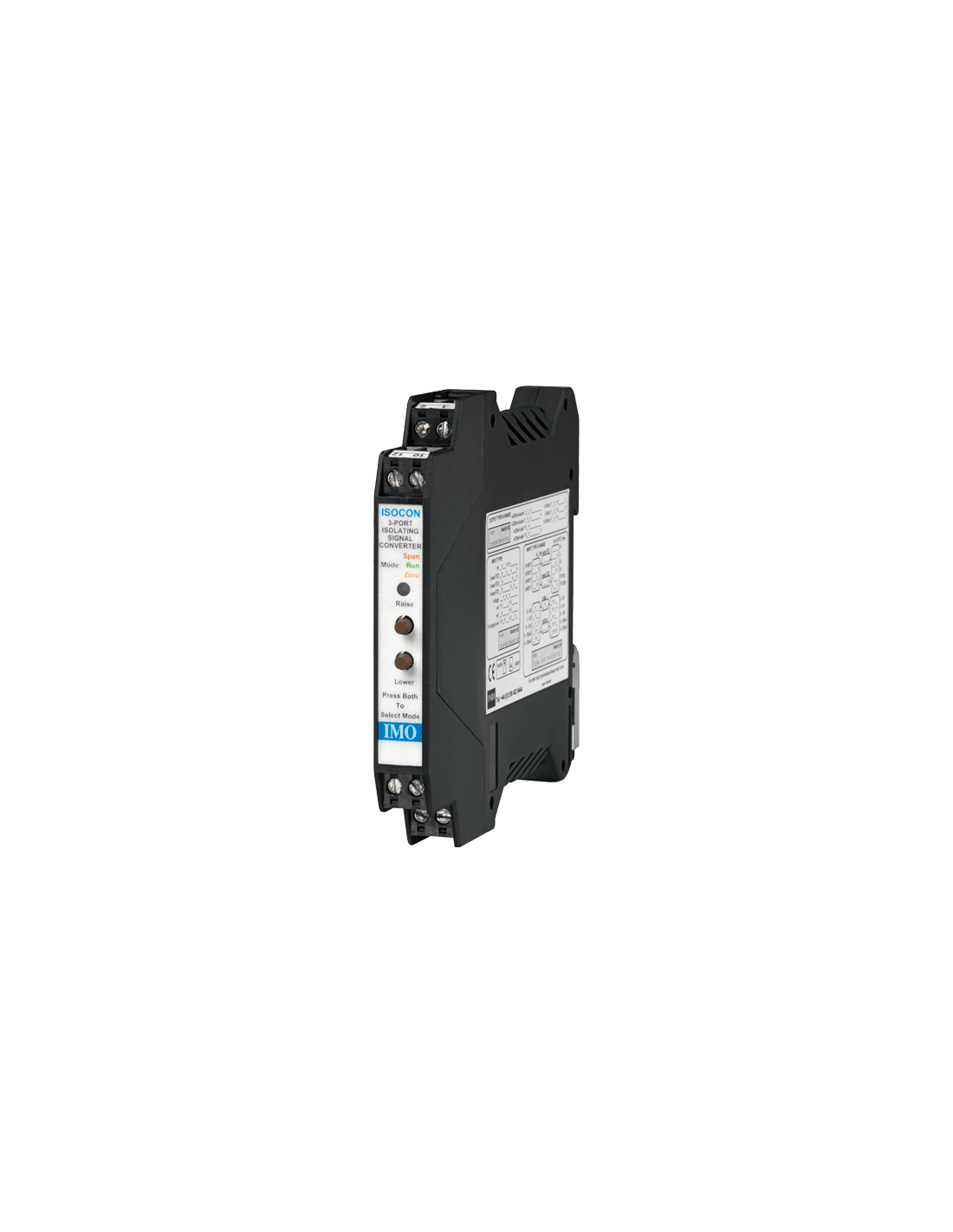

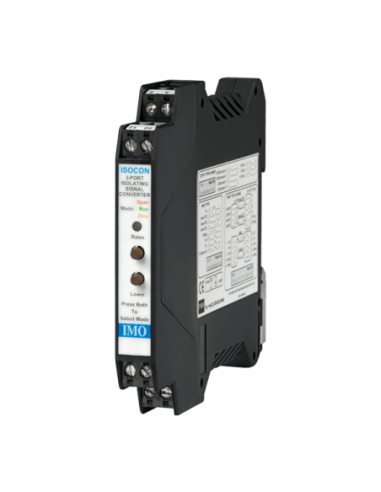

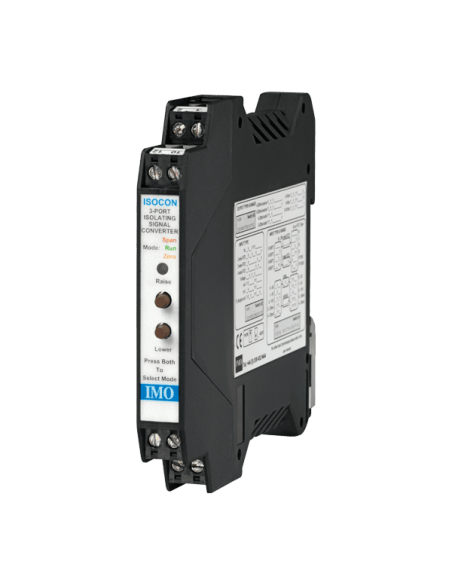

Isolating signal converter Input mV/V excitation 10 V DC
Signal converter ISOCON-6-STRAIN. DC power supply.
Adjustable input mV/V.
Adjustable output.
Excitation voltage 10 V DC.
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
The Isocon-6-Strain is specifically configured for Strain Input only, and should not be used for any other input signal type.
The input configuration is made using switches S1 and S2.
S1 is used to select the mV range that the bridge will produce with a 10V excitation voltage applied. So for a 3mV/V bridge with 10V excitation, the output will be 0-30mV. By referring to the mV Input Range table below, the range suitable for 0-30mV is the 0-50mV input. This is selected with S1 switches 4, 8, 9, 10 ON, and all others off.
S2 must always be set to 2, 7, 8, 11 ON, all others off.
The output type and range can be selected in the same way as the standard ISOCON product using switch S3 as per the manual.
