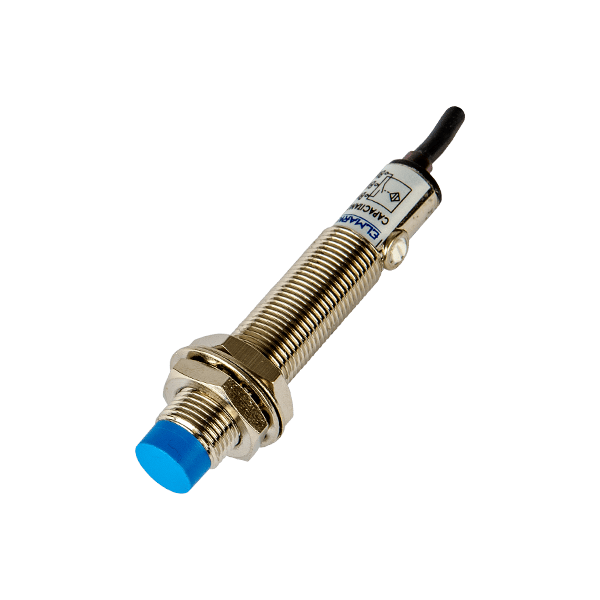

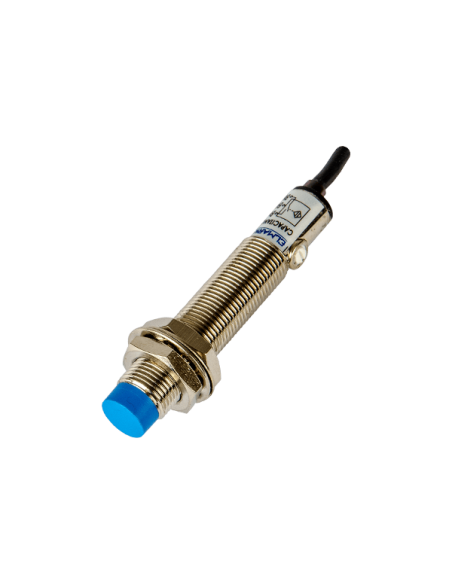

Cylindrical capacitive sensor

Capacitive sensor Ø12 to Ø30

Complete technical description →
46CM1232NA
12 Items
ELMARK

€54.65

€51.92 Excl. tax
Select your capacitive sensor
Select your capacitive sensor 46CM1232NA 46CM1232PA 46CM2412PA 46CM2412A 46CM1838PA 46CM1828A
Combinations Select your capacitive sensor Reference Stock Price Add to cart

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM1232NA

Reference : 46CM1232NA

Stock : 12

46CM1232NA

46CM1232NA

Available now

Stock : 12

€54.65 Tax excl. - 5%

€51.92 Tax excl.

€54.65 Tax excl.
€51.92 Tax excl.
(- 5%)

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM1232PA

Reference : 46CM1232PA

Stock : 17

46CM1232PA

46CM1232PA

Available now

Stock : 17

€47.18 Tax excl. - 5%

€44.82 Tax excl.

€47.18 Tax excl.
€44.82 Tax excl.
(- 5%)

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM2412PA

Reference : 46CM2412PA

Stock : 18

46CM2412PA

46CM2412PA

Available now

Stock : 18

€42.40 Tax excl. - 5%

€40.28 Tax excl.

€42.40 Tax excl.
€40.28 Tax excl.
(- 5%)

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM2412A

Reference : 46CM2412A

Stock : 19

46CM2412A

46CM2412A

Available now

Stock : 19

€40.37 Tax excl. - 5%

€38.35 Tax excl.

€40.37 Tax excl.
€38.35 Tax excl.
(- 5%)

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM1838PA

Reference : 46CM1838PA

Stock : 16

46CM1838PA

46CM1838PA

Available now

Stock : 16

€35.02 Tax excl. - 5%

€33.27 Tax excl.

€35.02 Tax excl.
€33.27 Tax excl.
(- 5%)

Cylindrical capacitive sensor

Cylindrical capacitive sensor

Select your capacitive sensor : 46CM1828A

Reference : 46CM1828A

Stock : 10

46CM1828A

46CM1828A

Available now

Stock : 10

€35.33 Tax excl. - 5%

€33.56 Tax excl.

€35.33 Tax excl.
€33.56 Tax excl.
(- 5%)

Capacitive sensors are used in machine systems and equipment for no-contact motion surveillance. They consist of two coaxial electrodes, a condenser and RC generator. This type of sensors reacts to both metal and non-metal objects, as the gearing distance for non-metal objects depends on their dielectric constants. They allow gearing distance adjustment for non-magnetic conductive materials. They are developed on the base of PNP and NPN transition. They have small dimensions and feature a metal cylindrical shell resistant to vibrations and a plastic lid which is oil and water resistant.


-Capacitive sensor - serie CM- xx.
-Insulating resistance: >= 50 MΩ
-Gearing distance: from 2mm to 15mm.
-Precision of repetition: 0.01 mm.
-Ambient temperature: -25°C to +70°C.
-Gearing speed: 5mm/s.
-Rated voltage: 6~36VDC; 90~230VAC.
-IP code: IP 54.

46CM1232NA
12 Items

Reference
Ø (mm)
Power supply
Contact
Start distance (mm)
46CM1232NA
12
10-30 VDC /3 wires
NPN - NO
0-4 mm
46CM1232PA
12
10-30 VDC /3 wires
PNP - NO
0-4 mm
46CM1838PA
18
10-30 VDC /3 wires
PNP - NO
0-8 mm
46CM1828A
18
220 VAC /2 wires
NO
0-8 mm
46CM2412PA
24
10-30 VDC /3 wires
PNP - NO
8 mm
46CM2412A
24
220 VAC /2 wires
NO
8 mm



Documentation


documentation technic-achat Technical datasheet 46CM


Certificates


certificat technic-achat CE Certificate
