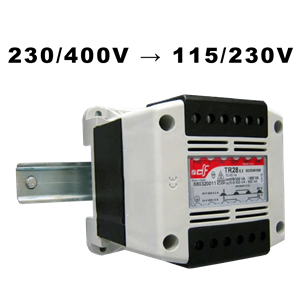

Single-phase voltage transformer
Single-phase transformer with double input 230/400 V and double output 115/230 VAC V. These transformers are made for developping a strong instantaneous power.
Characteristics:
- Primary: 230/400 V
- Secondary: 115/230 VAC
- DIN rail fixing for transformers up to 320 VA
- Operating temperature: -20/70 °C
Protection IP20
References
Power
(VA)
(VA)
Primary
proctection 200V (aM)
proctection 200V (aM)
Primary
protection 400V (aM)
protection 400V (aM)
Output voltage
115V
115V
Output voltage
230V
230V
Dimensions
(LxHxD)
(LxHxD)
TRS_115230_040VA
40 VA
0,5 A
0,25 A
315 mA
160 mA
68,5x76x92,2
TRS_115230_063VA
63 VA
0,5 A
0,5 A
500 mA
250 mA
84x113x112
TRS_115230_100VA
100 VA
1 A
0,5 A
800 mA
400 mA
84x113x116
TRS_115230_160VA
160 VA
2 A
1 A
1,25 A
630 mA
84x113x131
TRS_115230_250VA
250 VA
2 A
2 A
2 A
1 A
108x135x138
TRS_115230_400VA
400 VA
4 A
2 A
3,15 A
1,6 A
120x152x141
| Power (VA 40°C) |
A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 25 | 68,5 | 76 | 92,2 | 64,5 | 56,5 | 5 | 7,5 | 0,80 |
| 40 | 68,5 | 76 | 92,2 | 64,5 | 56,5 | 5 | 7,5 | 1,10 |
| 63 | 84 | 113 | 112 | 101 | 66 | 5 | 7,5 | 1,80 |
| 100 | 84 | 113 | 116 | 101 | 66 | 5 | 7,5 | 1,95 |
| 160 | 84 | 113 | 131 | 101 | 66 | 5 | 7,5 | 2,55 |
| 200 | 108 | 135 | 133 | 120 | 82 | 6,5 | 9,5 | 4,15 |
| 250 | 108 | 135 | 138 | 120 | 82 | 6,5 | 9,5 | 4,40 |
| 320 | 108 | 135 | 148 | 120 | 82 | 6,5 | 9,5 | 4,95 |
| 400 | 120 | 152 | 141 | 135 | 94 | 7 | 9,5 | 5,80 |
| 500 | 120 | 152 | 156 | 135 | 94 | 7 | 9,5 | 7,00 |
| 630 | 150 | 177 | 140 | 160 | 115 | 7 | 2 | 8,60 |
| 800 | 150 | 177 | 160 | 160 | 115 | 7 | 2 | 11,4 |
| 1000 | 150 | 177 | 182,6 | 160 | 115 | 7 | 2 | 14,3 |
| 1300 | 192 | 210 | 170 | 193 | 150 | 7 | 2 | 14,6 |
| 1600 | 192 | 210 | 185 | 193 | 150 | 7 | 2 | 17,8 |
| 2000 | 192 | 210 | 200 | 193 | 150 | 7 | 2 | 20,8 |
| 2500 | 192 | 210 | 220 | 193 | 150 | 7 | 2 | 25,7 |
| 3000 | 192 | 210 | 250 | 193 | 150 | 7 | 2 | 31,5 |
