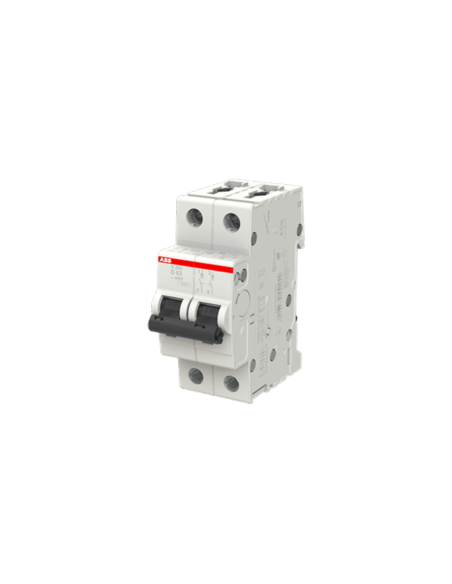

Modular circuit breaker 2P C/D curve S200
S200 Miniature circuit breaker - 2P - 6000A/10KA (2 modules) - Comb Busbar compatible
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Modular circuit breaker 2P:
Miniature circuit breakers from System pro M compact S200 range limit current.
The circuit breaker has 2 mechanisms: one delayed thermal trip mechanisms for overloads protection and one electromagnetic trip mechanism for short-circuits protection.
The auxiliary contact can be mounted on this S200 circuit breaker to save 50% space.
Technical characteristics:
- Number of poles: 2-pole
- C or D curve depending on the model
- Breaking capacity: 10kA
- Set frequency: 50/60Hz
Rated current
C curve reference
Supplier reference
D curve reference
Supplier reference
0.5A
S202_C0.5
2CDS252001R0984
S202_D0.5
2CDS252001R0981
1A
S202_C1
2CDS252001R0014
S202_D1
2CDS252001R0011
2A
S202_C2
2CDS252001R0024
S202_D2
2CDS252001R0021
3A
S202_C3
2CDS252001R0034
S202_D3
2CDS252001R0031
4A
S202_C4
2CDS252001R0044
S202_D4
2CDS252001R0041
6A
S202_C6
2CDS252001R0064
S202_D6
2CDS252001R0061
8A
S202_C8
2CDS252001R0084
S202_D8
2CDS252001R0081
10A
S202_C10
2CDS252001R0104
S202_D10
2CDS252001R0101
13A
S202_C13
2CDS252001R0134
S202_D13
2CDS252001R0131
16A
S202_C16
2CDS252001R0164
S202_D16
2CDS252001R0161
20A
S202_C20
2CDS252001R0204
S202_D20
2CDS252001R0201
25A
S202_C25
2CDS252001R0254
S202_D25
2CDS252001R0251
32A
S202_C32
2CDS252001R0324
S202_D32
2CDS252001R0321
40A
S202_C40
2CDS252001R0404
S202_D40
2CDS252001R0401
50A
S202_C50
2CDS252001R0504
S202_D50
2CDS252001R0501
63A
S202_C63
2CDS252001R0634
S202_D63
2CDS252001R0631
