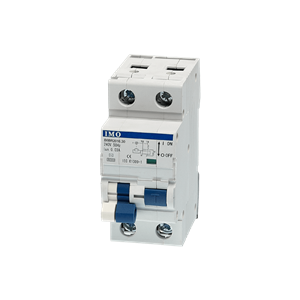

Residual current circuit-breakers Type A
Residual current circuit-breaker 6KA, 30mA, 1P + N, 6 Amp Type A
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Residual current circuit-breakers type A:
Load breaking in case of:
- Insulation fault of conductors towards consumers (Residual current device protection phase/Earth -30 mA).
- Contact voltage with a person (Residual current device protection phase/Earth 30 mA).
Technical characteristics:
- Type A (accepts a direct component: induction furnace, charger...)
- Nominal operating voltage: 230/400V; 50 Hz, 60 Hz.
- Breaking capacity: 6 KA.
- Response time of the automatic circuit-breaker <0.1s.
- Connecting terminals: 25 mm².
- Resistance to electromechanical wear (number of cycles): 4000.
- Protection rating: IP20.
Reference
Number of poles
Nominal current
Reference supplier
Leakage current
DIJDIF6CR1N0630-A
1P + N
6A
B6CR1N06-30-A
30mA
DIJDIF6CR1N1030-A
1P + N
10A
B6CR1N10-30-A
30mA
DIJDIF6CR1N1630-A
1P + N
16A
B6CR1N16-30-A
30mA
DIJDIF6CR1N2030-A
1P + N
20A
B6CR1N20-30-A
30mA
DIJDIF6CR1N2530-A
1P + N
25A
B6CR1N25-30-A
30mA
DIJDIF6CR1N3230-A
1P + N
32A
B6CR1N32-30-A
30mA
