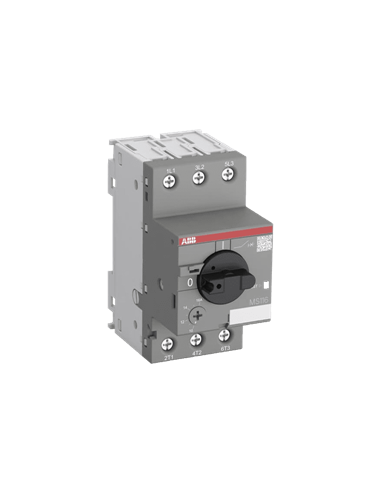

Manual motor starter MS116
Manual motor starters for single/three motor protection
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Manual motor starters MS116/MS165 ABB:
This manual motor starter with an operated rated current of 1,0A is used to switch motors manually ON/OFF. Suitable for single-phase and three-phase motors.
It also protects the motor against short-circuits, overloads and phase failures. Rated breaking capacity for service short-circuits is 50kA for 400V AC.
It adapts to every environment thanks to its compact size (45mm width for MS116 model / 55mm for MS165).
For powerful motors, we recommend you to choose the MS165 range to protect motors up to three-phase 45kW / 80A.
Characteristics:
- Protection against overloads (trip class 10A)
- Phase loss sensitivity
- Disconnect function
- Temperature compensation: -25°C +55°C
- Trip-free mechanism
- Rotary handle with clear switch position indication
Reference
Setting range
Three-phase motor associated
MS116-0.16
0.10 to 0.16A
0.03 kW
MS116-0.25
0.16 to 0.25A
0.06 kW
MS116-0.4
0.25 to 0.40A
0.09 kW
MS116-0.63
0.40 to 0.63A
0.18 kW
MS116-1.0
0.63 to 1.00A
0.25 kW
MS116-1.6
1.00 to 1.60A
0.55 kW
MS116-2.5
1.60 to 2.50A
0.75 kW
MS116-4.0
2.50 to 4.00A
1.5 kW
MS116-6.3
4.00 to 6.30A
2.2 kW
MS116-10.0
6.30 to 10.0A
4 kW
MS116-12.0
8.00 to 12.0A
5.5 kW
MS116-16.0
10.0 to 16.0A
7.5 kW
MS116-20.0
16.0 to 20.0A
7.5 kW
MS116-25.0
20.0 to 25.0A
11 kW
MS116-32.0
25.00 to 32.0A
15 kW
MS165-54
40.00 to 54.0A
22 kW
MS165-65
52.00 to 65.0A
30 kW
