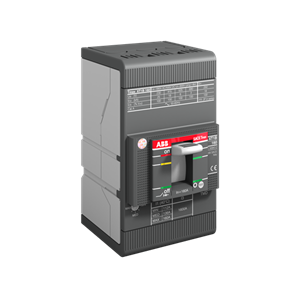

Thermal-magnetic circuit breaker 3P XT1C 160 TMD 100A 3P FF 1SDA067397R1

Thermal-magnetic circuit breaker 3P XT1C 160 TMD 100A 3P FF

More
Nominal current
ABB_DIJ_3P_100A
€239.82 -5%
From €227.83 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788





Thermal-magnetic circuit breaker by ABB features a 3-pole current and a varying current from 100 to 630A. Often used in working environments, this thermal circuit breaker is essential for the electrical system safety.


Technical characteristics:

►Number of poles: 3
►Rated current:  according to the model up to 630A
►Rated voltage: 690V
►Current type: AC/DC

Reference
Current
Dimensions
Weight
Model
International ref
PDF doc
ABB_DIJ_3P_100A
100 A
70x76.2x130mm
1.136kg
XT1C
1SDA067397R1
documentation gabarit de perçage sans poignée
ABB_DIJ_3P_160A
160 A
70x76.2x130mm
1.128kg
XT1C
1SDA067399R1
documentation gabarit de perçage sans poignée
ABB_DIJ_3P_250A
250 A
70x105x150mm
1.64kg
XT3N
1SDA068059R1
documentation gabarit de perçage sans poignée
ABB_DIJ_3P_400A
400 A
103.5x140x205mm
4.82kg
XT5N
1SDA100354R1
documentation gabarit de perçage sans poignée
ABB_DIJ_3P_630A
630 A
103.5x210x268mm
9.5kg
XT6N
1SDA107562R1
documentation gabarit de perçage sans poignée

Documentation

documentation technic-achat Technical datasheet
documentation technic-achat Catalogue

Certificates

certificat technic-achat CE Certificate







Online support

aide en ligne Technic-Achat Guide to choose electrical protections

Videos

vidéo Technic-AchatAssemblies and projects
