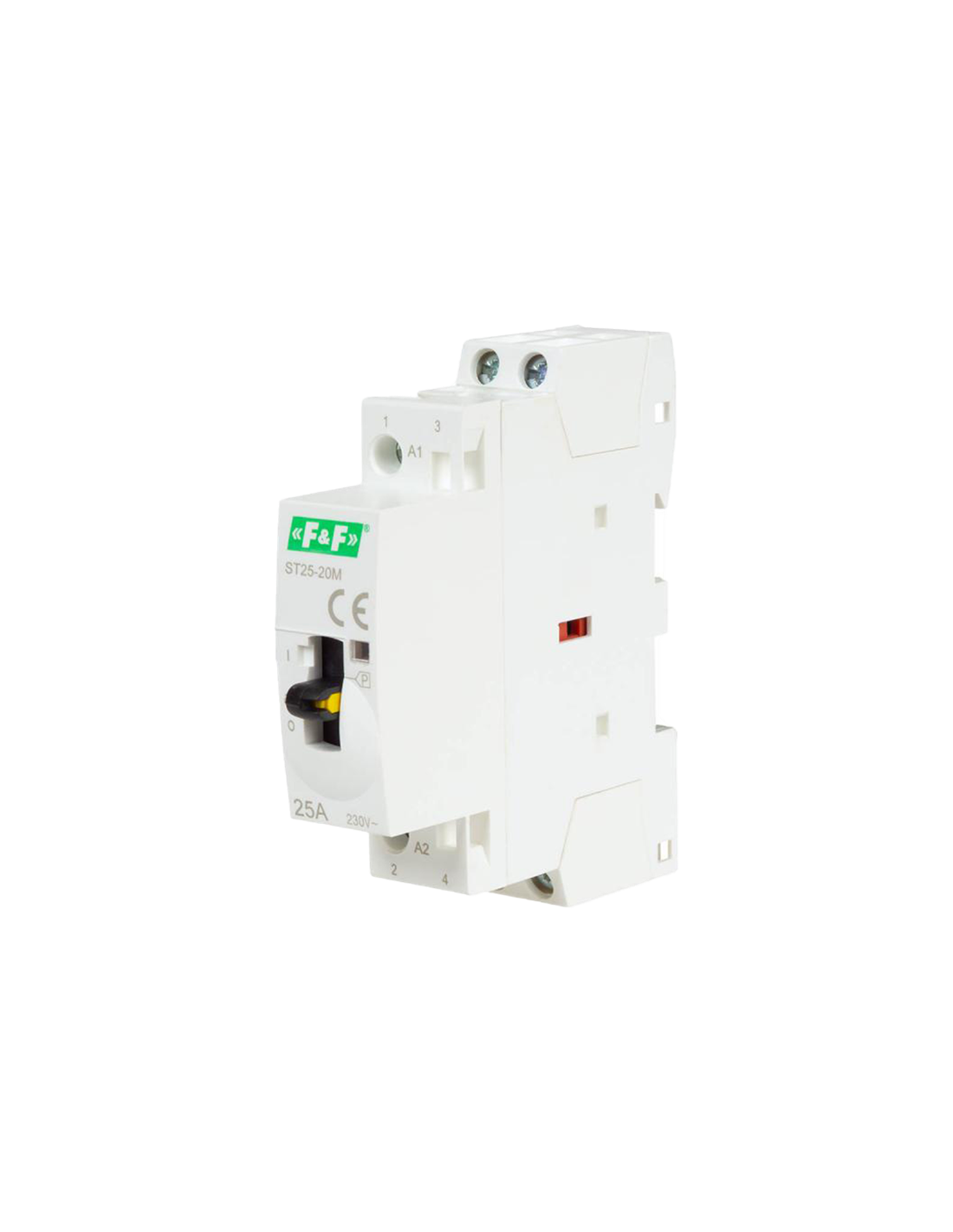

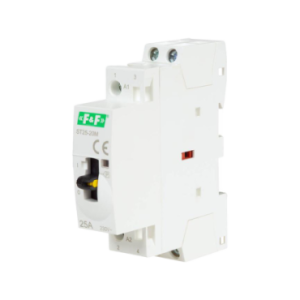

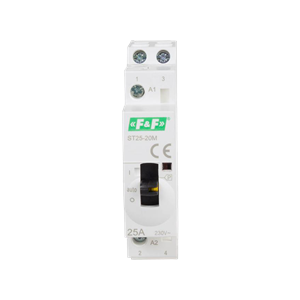

Modular contactor 0-AUTO-MANU 2NO, 230VAC, 25A
Modular contactor 0-AUTO-MANU 2NO, 230VAC, 25A
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Modular contactor with manual command
3 positions:
- 0: The contactor contacts remain open regardless of the power supply voltage state.
- AUTO: Applying power activates the contactor and closes the contacts. After the power supply is disconnected, the contactor switches off and the contacts opens.
- MANU: If the contactor coil is not powered, the contractor contacts are closed. After powering the contactor, the switch automatically switches to the "Auto" position and from that moment on operates in automatic mode.
Technical characteristics:
- Rated voltage 250 VAC
- Coil supply voltage: 230÷240 VAC
- Rated current 20A
- Contact type: 2NO
- Rail mounting TH-35mm
- Operating temperature: -25° to +55°C
- Dimensions: 18x85x65 mm
