Contactor AF 7,5kW AC3 ABB
Contactor AF 7,5kW AC3 ABB
close
Delivery throughout Europe
Secure payment
English speaker +33535565788

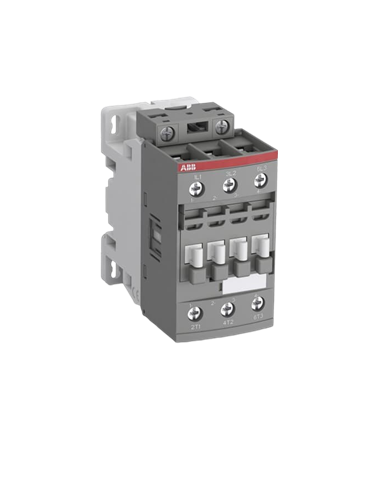

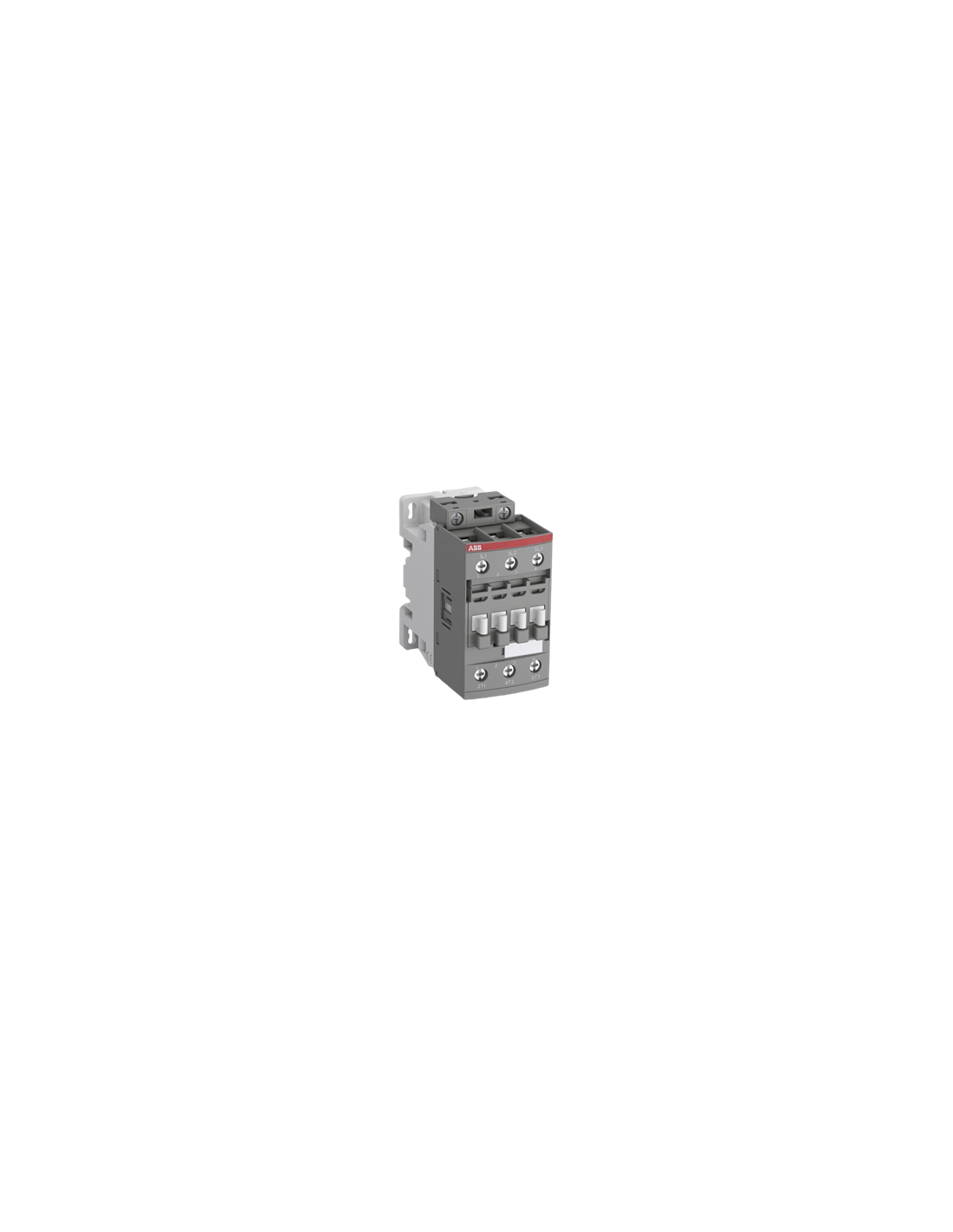

Electric 3-pole contactor 7.5kW AF16 with 1 auxiliary contact
Technical characteristics:
- Mainly used for the control of three-phase motors and power circuits up to 690V AC and 220V DC.
- Coil consumption: 50VA peak (switch), 2.2A/2W constant operation
- For DC coil: eliminating inrush current => 50W inrush 2W permanent regime
- Clear closing and opening
- Safety screw terminals keep the wires tightened to insure reliable connections, even with a movement or vibrations
- Rated voltage is 690V, designed to be suitable for high voltage systems
Reference
Coil
voltage
voltage
AC coil
consumption
consumption
DC coil
consumption
consumption
Auxiliary contact
AF16-30-01-13
100 to 250
VAC/DC
VAC/DC
Inrush: 50VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NC
AF16-30-10-13
100 to 250
VAC/DC
VAC/DC
Inrush: 50VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NO
AF16Z-30-01-21
24 to 60V AC
and 20 to 60V DC
and 20 to 60V DC
Inrush: 50VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NC
AF16Z-30-10-21
24 to 60V AC
and 20 to 60V DC
and 20 to 60V DC
Inrush: 50VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NO
AF16-30-01-14
250 to 400
VAC/DC
VAC/DC
Inrush: 50 VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NC
AF16-30-10-14
250 to 400
VAC/DC
VAC/DC
Inrush: 50VA
Hold: 2.2VA/2W
Hold: 2.2VA/2W
Inrush: 50W
Hold: 2W
Hold: 2W
1NO
Contacteur AF16 :
Contacteur AF16Z :
