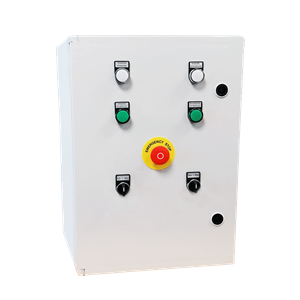

Three-phase transfer switch
The three-phase transfer switch box 400V + Neutral source enables the network to be switched between a primary and a secondary if a power cut occurs. The box includes a contact, that switches on the secondary source in case of a power cut.
Characteristics:
Description: 2 operating sources to supply a machine.
Choosing the main source (source 1 or source 2).
Terminal connection.
Cabinet dimensions: 500 x 350 x 195 (WxHxD mm)
Options:
- simple transfer switch: automatic sources switching, start contact for the secondary source, and, phase and neutral disconnection
- full transfer switch: automatic switching between the 2 sources, start contact for secondary source, and, phase and neutral disconnection, manual control over the used source, phases rotation direction and phase loss control
Two operating modes (auto or manual) :
- manual transfer switch: You may use one of the two sources permanently. Can operate during the test or maintenance phase of one of the networks.
- automatic transfer switch: The main supply is the default primary source. If the primary source is cut off, the secondary source takes over automatically.
Reference
Current
Power
KW
KW
Switch
choice
choice
INV_SRC_T4_12_S
24A
12KW
Auto
INV_SRC_T4_12_C
24A
12KW
Auto - Manu
INV_SRC_T4_16_S
32A
16KW
Auto
INV_SRC_T4_16_C
32A
16KW
Auto - Manu
INV_SRC_T4_30_S
60A
30KW
Auto
INV_SRC_T4_30_C
60A
30KW
Auto - Manu
