Hand hydraulic punching machine 15T SYK-15 with tool
Delivery throughout Europe
Secure payment
English speaker +33535565788

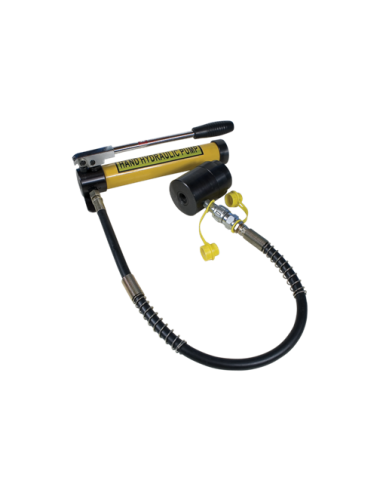

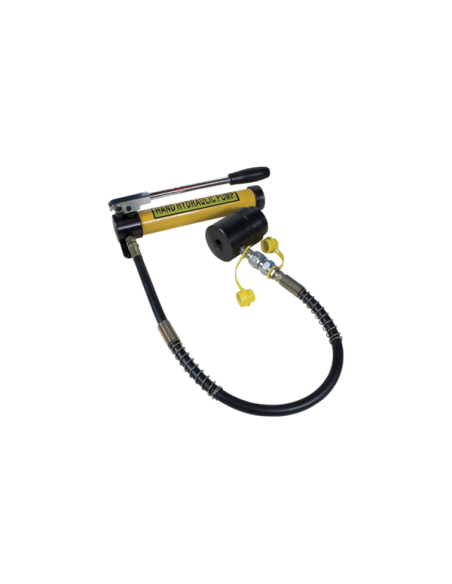

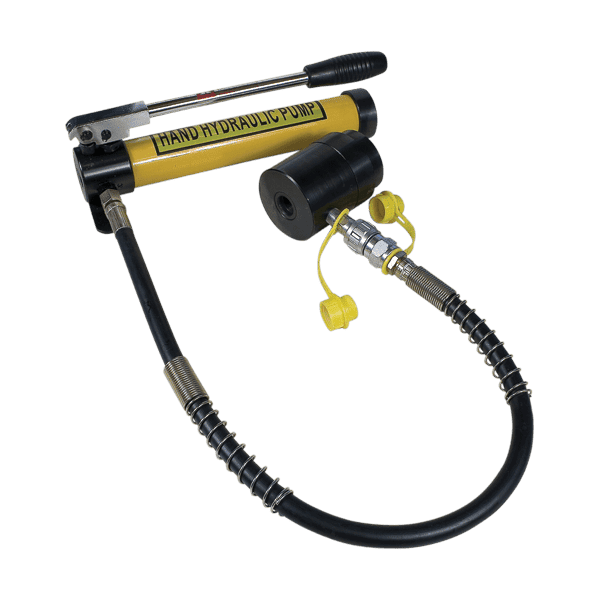

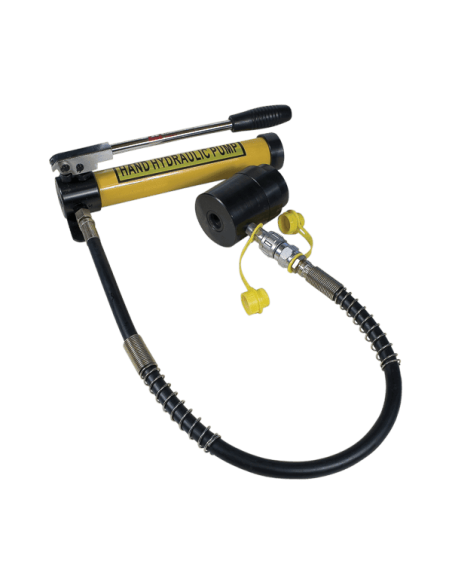

Manual hydraulic punching machine type SYK-15 (OUT-POI-H15)

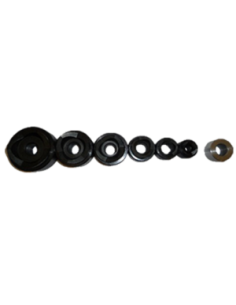

Sold with two batches of punches:
- Round punches: Ø 22,5 - 28.3 - 34.6 - 40,2 - 49,6 - 61.5 mm
- Square punches: 32x32 mm
Applications:
* Punching holes, with a thickness up to 3 mm, in a sheet metal without rotating movements.
Technical characteristics:
* Mobile punching head with a flexible pipe for hydraulic oil to punch holes in the sheet metal.
* Punch pressing force: 15 t.
* Punching capacity:
- sheet metal 3 mm - holes up to Ø 60.8 mm.
- sheet metal 2 mm - holes up to Ø 60 mm.
- square hole up to 110x110 mm.
* Punch thickness: 25 mm.
* Weight of the tool: 11.5 kg.
* Hydraulic oil: #15 (hydraulic oil viscosity 15).
* Metal box for the tool.
* Kit of o-ring seals for the hydraulic cylinder.
