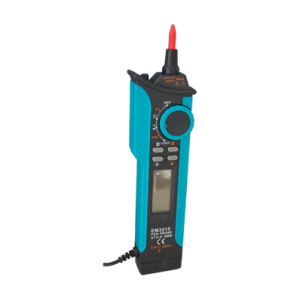

Digital multimeter/ fountain pen;pen EM 3215
This is a digital device for measuring electric values in the form of a pen. It features automatic range adjustment, manual value selection.
It has an LCD display, data retain function, automatic reset, polarity selection, range overload indication. It is of high accuracy of analogue-digital conversion, precision in measuring and resistance to electro-magnetic interferences.
It has an automatic switch off and low battery indication and a torch.
Technical characteristics:
* DC voltage: 200 m/ 2 / 20 / 200 / 600 V.
* AC voltage: 2 / 20 / 200 / 600 V.
* DC current: 20 m up to 200 mA.
* AC current: 20 m up to 200 mA.
* Resistance: 200 / 2 K / 20 K / 200 K / 2 M / 20 MΩ.
* Logic level: High > 2.3 V; Low < 0.8 V.
* Circuit control: yes.
* Diodes control: yes.
* Weight: 182 g. / including battery.
* Battery: 1x9 V.
* Dimensions: 57 x 230 x 30 mm.
