Flange for gear motor TKB58 | EASI-Spare

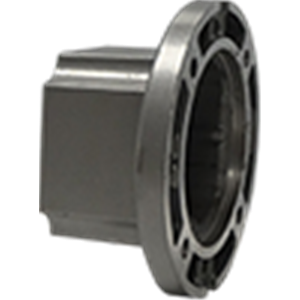

Flange for TKB58 motor

Motor mounting

Size of motor ISO

Reference TKB58_80B14

Pre-order

€9.42 -5%
€8.95 Excl. tax

The input flange of the gear unit must correspond to the flange of your motor
B5 (Plain holes flanges) or B14 (Tapped holes flanges).
Coupling shaft between the gear unit and the motor

References
Input flangeType
of flangeHeight
of motor shaft D
mmMNS

TKB58_63B5B56311115959

TKB58_71B5B571141301109

TKB58_80B5B5801916513011

TK58_90B5B5902416513011

TKB58_100_112B5B5100 or 1122821518013.5

TKB58_80B14B148019100807

TKB58_90B14B149024115959

TKB58_100_112B14B14100 or 112281301109

cote bride pour réducteur TKN58

Documentation

General documentation TKM-TKB
Dimensions

Online support

aide en ligne Technic-Achat Choosing a gear motor

Videos

aide en ligne Technic-Achat Assemblies and projects

Motor mounting	flange type B5 flange type B14
Size of motor ISO	height of shaft 63 diameter 11 mm height of shaft 71 diameter 14 mm motor with shaft height 80 diameter 19 mm motor with shaft height 90 diameter 24 mm height of shaft 100 or 112 mm diameter 28mm

Combinations	Motor mounting	Size of motor ISO	Reference	Stock	Price	Add to cart
Motor mounting : flange type B5 Size of motor ISO : height of shaft 63 diameter 11 mm Reference : TKB58_63B5 Stock : 0	flange type B5	height of shaft 63 diameter 11 mm	TKB58_63B5	Available later	€21.12 Tax excl. €20.06 Tax excl. - 5%	€21.12 Tax excl. €20.06 Tax excl. (- 5%)
Motor mounting : flange type B5 Size of motor ISO : height of shaft 71 diameter 14 mm Reference : TKB58_71B5 Stock : 0	flange type B5	height of shaft 71 diameter 14 mm	TKB58_71B5	Available later	€21.12 Tax excl. €20.06 Tax excl. - 5%	€21.12 Tax excl. €20.06 Tax excl. (- 5%)
Motor mounting : flange type B5 Size of motor ISO : motor with shaft height 80 diameter 19 mm Reference : TKB58_80B5 Stock : 0	flange type B5	motor with shaft height 80 diameter 19 mm	TKB58_80B5	Available later	€14.04 Tax excl. €13.34 Tax excl. - 5%	€14.04 Tax excl. €13.34 Tax excl. (- 5%)
Motor mounting : flange type B5 Size of motor ISO : motor with shaft height 90 diameter 24 mm Reference : TKB58_90B5 Stock : 0	flange type B5	motor with shaft height 90 diameter 24 mm	TKB58_90B5	Available later	€21.12 Tax excl. €20.06 Tax excl. - 5%	€21.12 Tax excl. €20.06 Tax excl. (- 5%)
Motor mounting : flange type B5 Size of motor ISO : height of shaft 100 or 112 mm diameter 28mm Reference : TKB58_100_112B5 Stock : 1	flange type B5	height of shaft 100 or 112 mm diameter 28mm	TKB58_100_112B5	Available now Stock : 1	€16.68 Tax excl. €15.85 Tax excl. - 5%	€16.68 Tax excl. €15.85 Tax excl. (- 5%)
Motor mounting : flange type B14 Size of motor ISO : motor with shaft height 80 diameter 19 mm Reference : TKB58_80B14 Stock : 0	flange type B14	motor with shaft height 80 diameter 19 mm	TKB58_80B14	Available later	€9.42 Tax excl. €8.95 Tax excl. - 5%	€9.42 Tax excl. €8.95 Tax excl. (- 5%)
Motor mounting : flange type B14 Size of motor ISO : motor with shaft height 90 diameter 24 mm Reference : TKB58_90B14 Stock : 0	flange type B14	motor with shaft height 90 diameter 24 mm	TKB58_90B14	Available later	€17.94 Tax excl. €17.04 Tax excl. - 5%	€17.94 Tax excl. €17.04 Tax excl. (- 5%)
Motor mounting : flange type B14 Size of motor ISO : height of shaft 100 or 112 mm diameter 28mm Reference : TKB58_100_112B14 Stock : 0	flange type B14	height of shaft 100 or 112 mm diameter 28mm	TKB58_100_112B14	Available later	€16.12 Tax excl. €15.31 Tax excl. - 5%	€16.12 Tax excl. €15.31 Tax excl. (- 5%)
