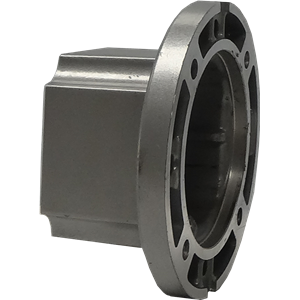

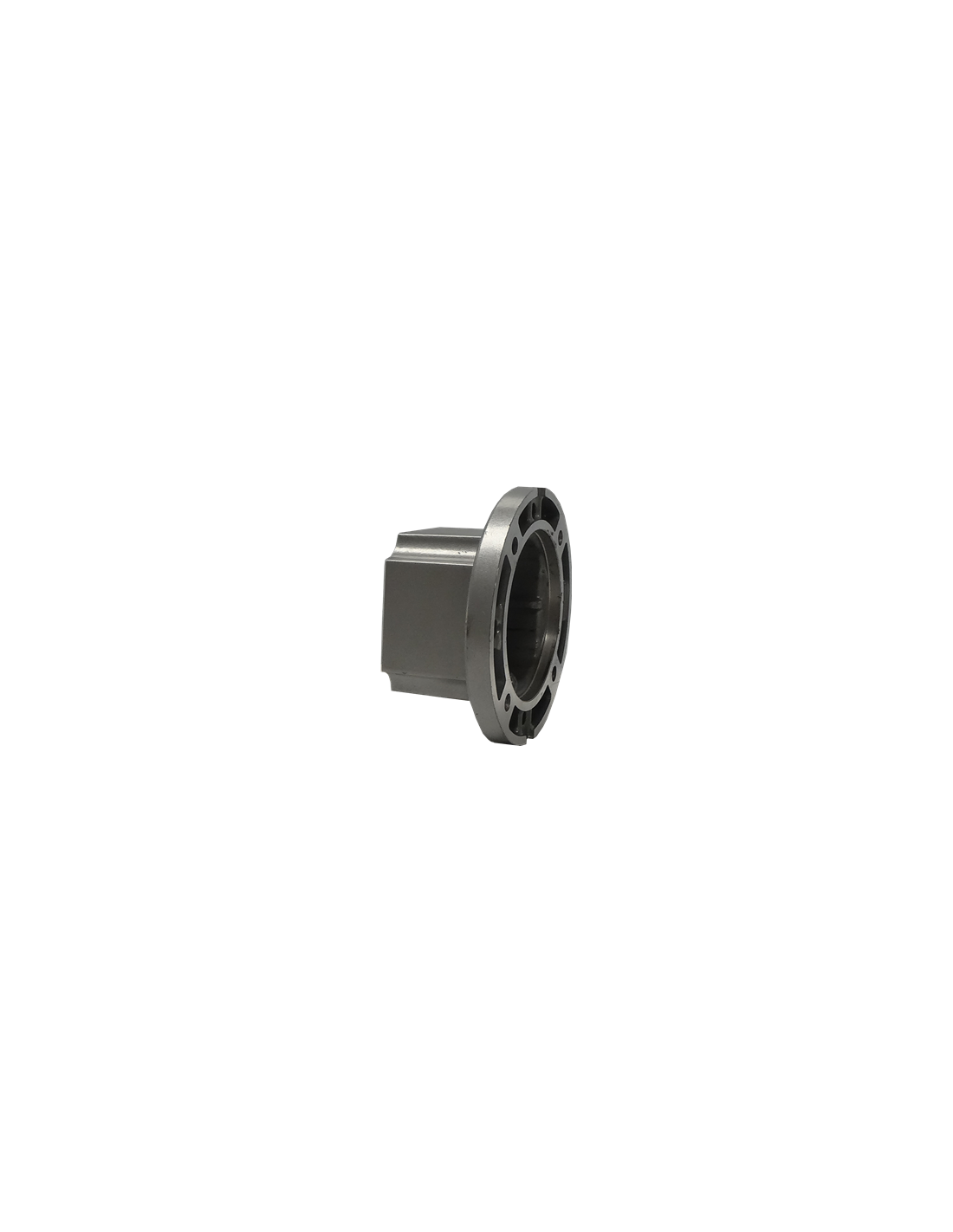

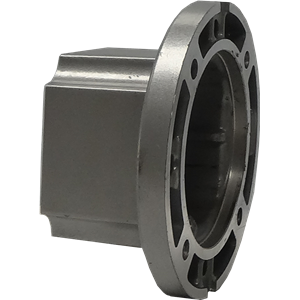

Flange for TKB48

Flange for TKB48

More
Motor mounting
Size of motor ISO
TKB48_63B5
€13.44 -5%
From €12.77 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



The gear unit input flange must correspond to the motor flange.
B5 (Plain holes flanges) or B14 (Tapped holes flanges).
Coupling shaft between the gear unit and the motor.

cote bride pour réducteur TKN58

Reference
Input flangeFlange
typeMotor shaft
 heightD
mmMNS
TKB48_63B5B56311115959
TKB48_71B5B571141301109
TKB48_80B5B5801916513011
TKB48_90B5B5902416513011
TKB48_100_112B5B5100 or 1122821518013.5
TKB48_80B14B148019100807
TKB48_90B14B149024115959
TKB48_100_112B14 B14100 or 112281301109
