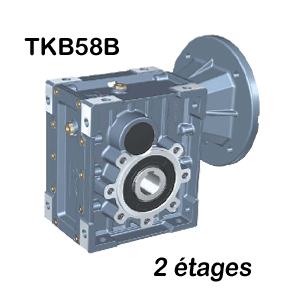

Gear unit TKB58B

Gear unit TKB58B

More
Number of reduction stages
Speed-reduction gear ratio
RED_TKB58B_007
€383.44 -5%
From €364.27 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788




Dimensioning table ->



Gear unit TKB58 2 and 3 stages :
 The hypoid gear* transmission ratio offers an excellent efficiency in transmission
and in energy savings, far greater than traditional worm gears (2).
Output torque: 72 to 500 N.m
Output speed: 15.2 to 373 rpm

Advantages:
  • Less noise in comparison to helical gears
  • Compact structure and small size
  • Light weight thanks to its aluminium alloy
(1)  ?=94%
Image d'un réducteur 2 étages / Sortie arbre creux Ø28 mm

Areas of application:
  • Machine tool: press, press brake, trimmer, cutting
  • Conveyor, bottling, food industry, pharmaceutical, textile, paper, ..
*Hollow shaft output Ø35 mm
Max torque 500Nm
 * Hypoid gears are halfway between worm drives and bevel gears. (1)
(2) ??=62%
Image d'un réducteur 2 étages / Sortie arbre creux Ø28 mm



Documentation

 Dimensions
 Technical datasheet
 Maintenance assembly

Softwares & 3D

Gear unit TKB58
Motor 2-pole B14
Motor 4-pole B14
Motor 2-pole B5
Motor 4-pole B5
