Worm gear unit TNRV 030
Worm gear unit TNRV 030
  • -5%
Worm gear unit TNRV 030
Worm gear unit TNRV 030

Worm gear unit TNRV 030

Worm gear unit 81x97x56mm
Hollow shaft output Ø14mm
Torque 2 to 24 N.m, output speed from 17.5 to 373 RPM

Select your gear unit TNRV30
RED_TNRV30_007
€76.84 -5%
From €73.00 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788


Worm gear unit TNRV30:
Colour: blue or silver

Advantages:
  • Softer and more silent than helical gears
  • Compact structure and small size
  • Light weight thanks to its aluminium alloy
  • High in radiating efficiency
  • Important output diameter in relation to the space needed for the gear unit
  • Rust proof paint
  • Good static irreversibility for reduction ratio higher than 20

Fields of application:
  • Machine tool: press, press brake, trimmer, cutting
  • Conveyor, bottling, food industry, pharmaceutical, textile, paper...

*Output hollow shaft Ø14mm
rducteur TNRV30

Tableau de comparaison TNRV30

Simple or double output shaft
ReferencesTypeDiameterLengthPlan
TNRV30_ARBSSimpleØ 14 mm102 mmDoc_technic_achat.png
TNRV30_ARBDDoubleØ 14 mm128 mmDoc_technic_achat.png
Simple output flange
TNRV30_FAOutput flange of the gear unit for coupling on the machine (FA type)Doc_technic_achat.png
Protective cover
TNRV30_PCOVEREnables to close the hole of the gear unit shaft (moving part)Doc_technic_achat.png
Anti-rotation arm
TNRV30_ARMEnables to set the gear unit on the machine casing. For example for conveyorsDoc_technic_achat.png
Motor adaptation

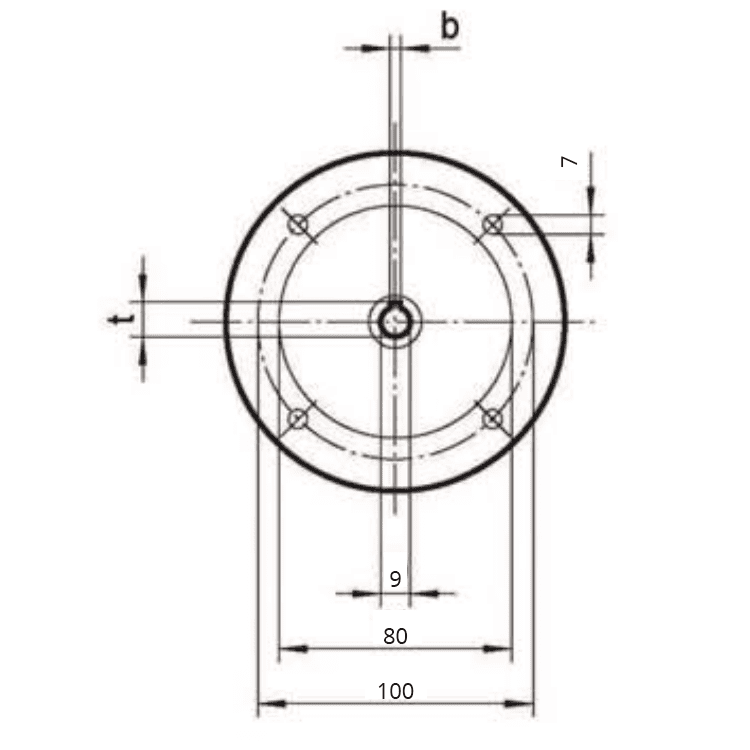

TNRV30_56B5Enables to mount a motor size 56 flange B5 on the gear unitDoc_technic_achat.png
TNRV30_56B14Enables to mount a motor size 56 flange B14 on the gear unit
TNRV30_BU11Reduction from Ø11 to Ø9 for mounting a motor size 56 on the gear unit
