Assembly kit for gear motors 20 or 25 HG2025 | EASI-Spare

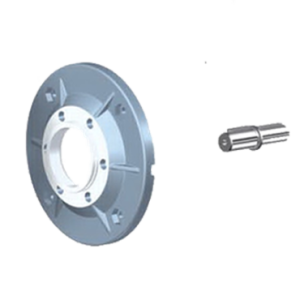

Input kit for gear unit 20 or 25 HG2025

Input flange + shaft coupling

Select your input kit for gear unit HG2025

Reference HG2025_B563_SS

In stock : 4 products

€25.96 -5%
€24.66 Excl. tax

Input flange + Shaft coupling for gear unit HG 20 or HG 25
Assembly kit for the gear unit HG 20 or 25 and the motor. It is included in the kit an input flange and a shaft coupling corresponding to the type of the motor.
The flange of the gear unit must correspond to the flange of your motor B5 (plain holes flanges) or B14 (tapped holes flanges).
- For mounting a motor IEC with a shaft height of 63 to 112.
- For motor flange B5 or B14.

References Kit	Type of motor	Flange external dimension (motor side)
References Kit	Type of motor	Diameter mm	P mm	M mm	N mm
Flange B5 (with plain holes)
HG2025_B563_SS	63	Ø 11	140	115	95
HG2025_B571_SS	71	Ø 14	160	130	110
HG2025_B580_SS	80	Ø 19	200	165	130
HG2025_B590_SS	90	Ø 24	200	165	130
Flange B14 (with tapped holes)
HG2025_B1471_SS	71	Ø 14	105	85	70
HG2025_B1480_SS	80	Ø 19	120	100	80
HG2025_B1490_SS	90	Ø 24	140	115	95

Documentation

General documentation
Compatibilities flanges

Online support

aide en ligne Technic-Achat Choosing a gear motor

Videos

schema Bride d'entrée + Arbre d'accouplement pour réducteur HG 20 ou HG 25

Select your input kit for gear unit HG2025

HG2025_B1471_SS HG2025_B1480_SS HG2025_B590_SS HG2025_B580_SS HG2025_B571_SS HG2025_B563_SS HG2025_B1490_SS

Combinations	Select your input kit for gear unit HG2025	Reference	Stock	Price	Add to cart
Select your input kit for gear unit HG2025 : HG2025_B1471_SS Reference : HG2025_B1471_SS Stock : 0	HG2025_B1471_SS	HG2025_B1471_SS	Available later	€30.76 Tax excl. €29.22 Tax excl. - 5%	€30.76 Tax excl. €29.22 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B1480_SS Reference : HG2025_B1480_SS Stock : 6	HG2025_B1480_SS	HG2025_B1480_SS	Available now Stock : 6	€38.46 Tax excl. €36.54 Tax excl. - 5%	€38.46 Tax excl. €36.54 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B590_SS Reference : HG2025_B590_SS Stock : 1	HG2025_B590_SS	HG2025_B590_SS	Available now Stock : 1	€44.34 Tax excl. €42.12 Tax excl. - 5%	€44.34 Tax excl. €42.12 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B580_SS Reference : HG2025_B580_SS Stock : 0	HG2025_B580_SS	HG2025_B580_SS	Available later	€26.64 Tax excl. €25.31 Tax excl. - 5%	€26.64 Tax excl. €25.31 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B571_SS Reference : HG2025_B571_SS Stock : 2	HG2025_B571_SS	HG2025_B571_SS	Available now Stock : 2	€32.22 Tax excl. €30.61 Tax excl. - 5%	€32.22 Tax excl. €30.61 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B563_SS Reference : HG2025_B563_SS Stock : 4	HG2025_B563_SS	HG2025_B563_SS	Available now Stock : 4	€25.96 Tax excl. €24.66 Tax excl. - 5%	€25.96 Tax excl. €24.66 Tax excl. (- 5%)
Select your input kit for gear unit HG2025 : HG2025_B1490_SS Reference : HG2025_B1490_SS Stock : 6	HG2025_B1490_SS	HG2025_B1490_SS	Available now Stock : 6	€38.78 Tax excl. €36.84 Tax excl. - 5%	€38.78 Tax excl. €36.84 Tax excl. (- 5%)
