Assembly kit for gear motor 30 or 35 HG3035 | EASI-Spare

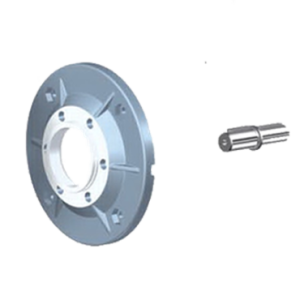

Input kit for gear unit 30 or 35 HG3035

Input flange + Shaft coupling

Select your input kit for gear unit HG3035

Reference HG3035_B563_SS

Pre-order

€36.04 -5%
€34.24 Excl. tax

Input flange + Shaft coupling for gear unit HG 30 or HG 35
Assembly kit with gear unit HG 30 or 35 and the motor.
The kit includes the input flange and the shaft coupling corresponding to the type of the motor.
The flange of the gear unit must correspond to the flange of your motor B5 (plain holes flange) or B14 (tapped holes flange).
- For mounting a motor IEC with a shaft height of 63 to 112
- For motor flange B5 or B14.

References Kit	Type of Motor	External dimension flange (motor side)
References Kit	Type of Motor	Diameter mm	P mm	M mm	N mm
Flange B5 (plain holes flange)
HG3035_B563_SS	63	Ø 11	140	115	95
HG3035_B571_SS	71	Ø 14	160	130	110
HG3035_B580_SS	80	Ø 19	200	165	130
HG3035_B590_SS	90	Ø 24	200	165	130
HG3035_B5100_SS	100	Ø 28	250	215	180
HG3035_B5112_SS	112	Ø 28	250	215	180
Flange B14 (tapped holes flange)
HG3035_B1471_SS	71	Ø 14	105	85	70
HG3035_B1480_SS	80	Ø 19	140	115	95
HG3035_B1490_SS	90	Ø 24	140	115	95
HG3035_B14100_SS	100	Ø 28	160	130	110
HG3035_B14112_SS	112	Ø 28	160	130	110

Documentation

General documentation
Compatibilities flanges

Online support

aide en ligne Technic-Achat Choosing a gear motor

Video

schema bride d'entrée + abre d'accouplement pour réducteur HG30/35

Combinations	Select your input kit for gear unit HG3035	Reference	Stock	Price	Add to cart
Select your input kit for gear unit HG3035 : HG3035_B14100_SS Reference : HG3035_B14100_SS Stock : 11	HG3035_B14100_SS	HG3035_B14100_SS	Available now Stock : 11	€49.74 Tax excl. €47.25 Tax excl. - 5%	€49.74 Tax excl. €47.25 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B14112_SS Reference : HG3035_B14112_SS Stock : 7	HG3035_B14112_SS	HG3035_B14112_SS	Available now Stock : 7	€57.00 Tax excl. €54.15 Tax excl. - 5%	€57.00 Tax excl. €54.15 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B590_SS Reference : HG3035_B590_SS Stock : 2	HG3035_B590_SS	HG3035_B590_SS	Available now Stock : 2	€47.08 Tax excl. €44.73 Tax excl. - 5%	€47.08 Tax excl. €44.73 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B580_SS Reference : HG3035_B580_SS Stock : 0	HG3035_B580_SS	HG3035_B580_SS	Available later	€45.76 Tax excl. €43.47 Tax excl. - 5%	€45.76 Tax excl. €43.47 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B571_SS Reference : HG3035_B571_SS Stock : 0	HG3035_B571_SS	HG3035_B571_SS	Available later	€40.84 Tax excl. €38.80 Tax excl. - 5%	€40.84 Tax excl. €38.80 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B563_SS Reference : HG3035_B563_SS Stock : 0	HG3035_B563_SS	HG3035_B563_SS	Available later	€36.04 Tax excl. €34.24 Tax excl. - 5%	€36.04 Tax excl. €34.24 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B5112_SS Reference : HG3035_B5112_SS Stock : 6	HG3035_B5112_SS	HG3035_B5112_SS	Available now Stock : 6	€56.40 Tax excl. €53.58 Tax excl. - 5%	€56.40 Tax excl. €53.58 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B5100_SS Reference : HG3035_B5100_SS Stock : 6	HG3035_B5100_SS	HG3035_B5100_SS	Available now Stock : 6	€49.14 Tax excl. €46.68 Tax excl. - 5%	€49.14 Tax excl. €46.68 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B1490_SS Reference : HG3035_B1490_SS Stock : 2	HG3035_B1490_SS	HG3035_B1490_SS	Available now Stock : 2	€45.44 Tax excl. €43.17 Tax excl. - 5%	€45.44 Tax excl. €43.17 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B1480_SS Reference : HG3035_B1480_SS Stock : 0	HG3035_B1480_SS	HG3035_B1480_SS	Available later	€45.72 Tax excl. €43.43 Tax excl. - 5%	€45.72 Tax excl. €43.43 Tax excl. (- 5%)
Select your input kit for gear unit HG3035 : HG3035_B1471_SS Reference : HG3035_B1471_SS Stock : 0	HG3035_B1471_SS	HG3035_B1471_SS	Available later	€43.06 Tax excl. €40.91 Tax excl. - 5%	€43.06 Tax excl. €40.91 Tax excl. (- 5%)
