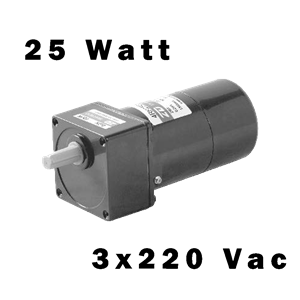

Geared motor with brake compact type 4 3x230V 25W

Geared motor with brake compact type 4 3x230V 25W

More
Rotation speed
MZD_4T2B_025_N007L
€104.74 -5%
From €99.50 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Compact geared motor 25 Watt 220 Vac Type 4 with brake

Low power compact geared motors MZD series are composed of an induction motor and a high precision planetary reduction gear.

Technical characteristics:

  • Voltage: 220 VAC
  • Power: 25W
  • Rotation speed: 7.5 to 500 rpm depending on the model
  • Rotation direction reversal


Advantages:

  • Low noise
  • Modular
  • High efficiency
  • Light
Reference
Output speed
nom. rpm
Output torque
 max N.m
Ratio
MZD_4T2B_040_N007L
7.5
8
1:200
MZD_4T2B_040_N010L
10
8
1:150
MZD_4T2B_040_N015L
15
8
1:100
MZD_4T2B_040_N020L
20
8
1:75
MZD_4T2B_040_N030L
30
6.6
1:50
MZD_4T2B_040_N050L
50
4.4
 1:30
MZD_4T2B_040_N060L
60
3.7
1:25
MZD_4T2B_040_N100L
100
2.4
 1:15
MZD_4T2B_040_N120L
120
2.0
1:12.5
MZD_4T2B_040_N150L
150
1.55
 1:10
MZD_4T2B_040_N300L
300
0.81
1:5
MZD_4T2B_040_N500L
500
0.49
1:3
Related products
ZD4M5
Motor support
Ratio 1:10
3GN10XK
Decimal gear unit
Mounting brackets for
MZD 4 motor

Certificates

certificat technic-achat CE Certificate

Documentation MZD_4T2B_025

 Technical datasheet MZD_4T2B_025 (FR)
 Technical datasheet MZD_4T2B_025 (EN-DE)

Documentation MZD Size 4 (80x80)

 Technical datasheet MZD T4 (FR)
 General specifications Compact geared motor MZD (EN)

Catalogue ZD MOTOR

 Catalogue ZD Motor - Geared motor AC/DC (EN)
