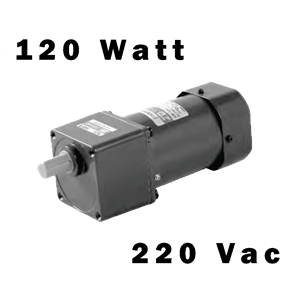

Compact geared motor T5GU KB 220V (120W Vs:7 rpm MZD_5M4F_120_U007LFTB)
Compact geared motor T5GU KB, 220V 120W Output speed = 7 RPM
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Compact gear motor 120 Watt 220 VAC Type 5
Low power MZD series compact geared motors are composed of a DC motor and a high precision planetary reduction gear.
Technical characteristics:
- Voltage: 220V AC
- Power: 120W
- Rotary direction reversal
Advantages:
- Low noise
- Modular
- High efficiency
- Light
Reference
Geared unit reference
Outpud speed
nbr. RPM
nbr. RPM
Output torque
max N.m
max N.m
Ratio
MZD_5M4F_120_U007LB
5GU200KB
7.5
20
1:200
MZD_5M4F_120_U010LB
5GU150KB
10
20
1:150
MZD_5M4F_120_U015LB
5GU100KB
15
20
1:100
MZD_5M4F_120_U020LB
5GU75KB
20
20
1.75
MZD_5M4F_120_U020LB
5GU50KB
30
20
1:50
MZD_5M4F_120_U050LB
5GU30KB
50
18.4
1:30
MZD_5M4F_120_U060LB
5GU25KB
60
15.3
1:25
MZD_5M4F_120_U100LB
5GU15KB
100
10.2
1:15
MZD_5M4F_120_U120LB
5GU12K5B
120
8.5
1:12.5
MZD_5M4F_120_U150LB
5GU10KB
150
7.0
1:10
MZD_5M4F_120_U300LB
5GU5KB
300
3.8
1:5
MZD_5M4F_120_U500LB
5GU3KB
500
2.3
1:3
Related products
5GU10XK
Decimal gearhead
Ratio 1:10
Certificates
CE Certificate

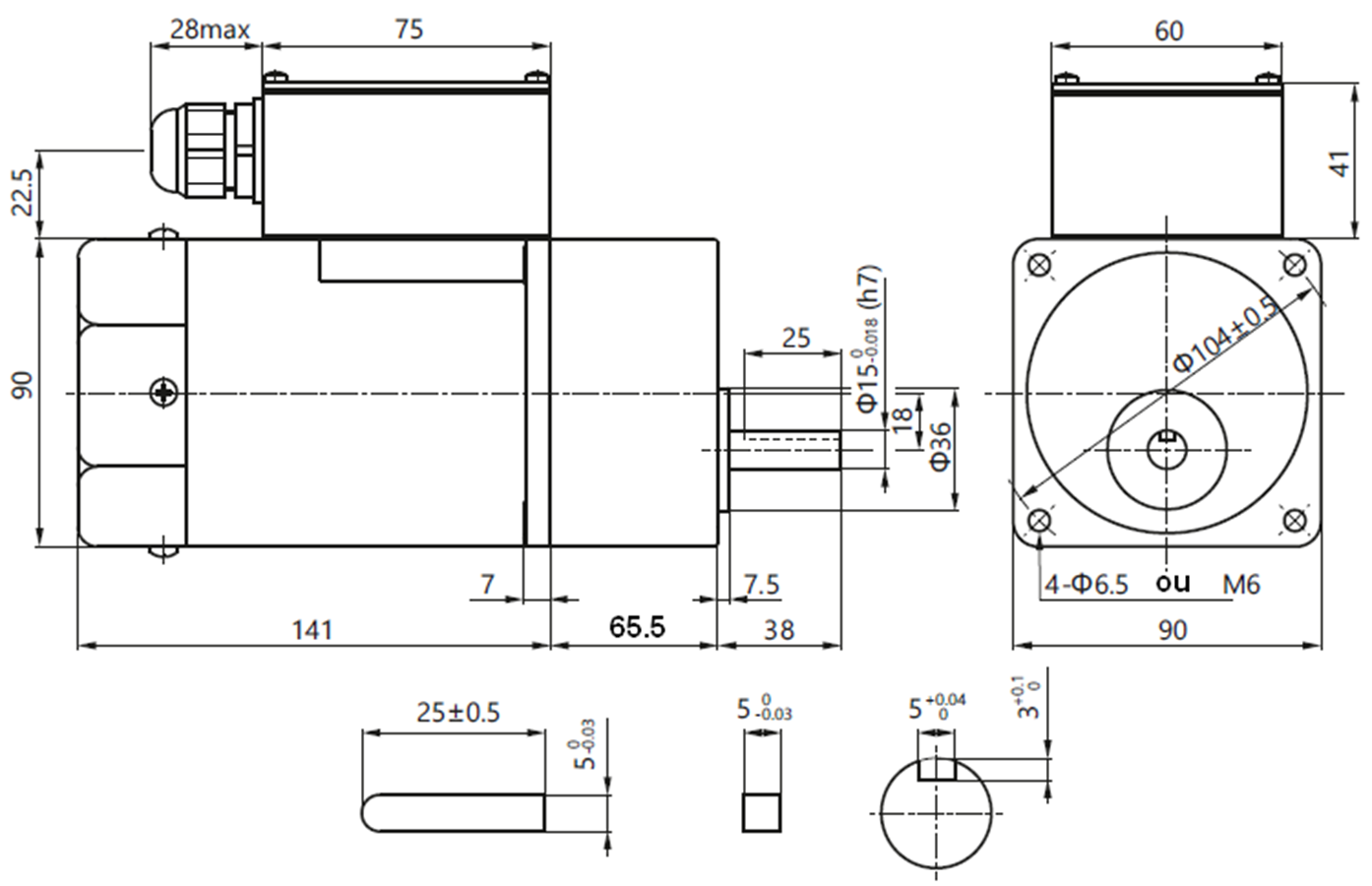

Documentation MZD_5M4F_120_UXXLFTB
Technical datasheet MZD_5M4F_120_UXXLFTB (FR) Technical datasheet MZD_5M4F_120_UXXLFTB (EN-DE)
Documentation MZD Size 5 (90x90)
Technical datasheet MZD T5 (FR) General specifications MZD compact geared motor (EN)
Catalogue ZD MOTOR
