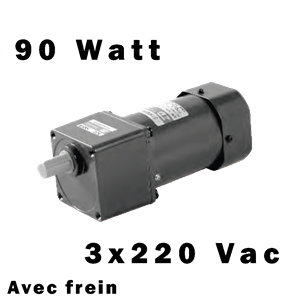

Compact geared motor T5 GU KB, 3x220V (+brake 90W Vs:7 rpm MZD_5T2B_090_U007LF)
Compact geared motor T5GU KB, 3*220V + 90W brake Output speed =7 RPM
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Compact geared motor 90 Watt 3x220 VAC Type 5 with brake
Low power MZD series compact geared motors are composed of a DC motor and a high precision planetary reduction gear.
Technical characteristics:
- Voltage: 220V AC
- Power: 90W
- Rotary direction reversal
- With brake
Advantages:
- Low noise
- Modular
- High efficicency
- Light
Reference
Geared unit reference
Output speed
no. RPM
no. RPM
Output torque
max N.m
max N.m
Ratio
MZD_5T2B_090_U007LB
5GU200KB
7.5
20
1:200
MZD_5T2B_090_U010LB
5GU150KB
10
20
1:150
MZD_5T2B_090_U015LB
5GU100KB
15
20
1:100
MZD_5T2B_090_U020LB
5GU75KB
20
20
1.75
MZD_5T2B_090_U030LB
5GU50KB
30
20
1:50
MZD_5T2B_090_U050LB
5GU30KB
50
13.9
1:30
MZD_5T2B_090_U060LB
5GU25KB
60
11.6
1:25
MZD_5T2B_090_U100LB
5GU15KB
100
7.7
1:15
MZD_5T2B_090_U120LB
5GU12K5B
120
6.4
1:12.5
MZD_5T2B_090_U150LB
5GU10KB
150
5.3
1:10
MZD_5T2B_090_U300LB
5GU5KB
300
2.8
1:5
MZD_5T2B_090_U500LB
5GU3KB
500
1.7
1:3
Related products
5GU10XK
Decimal gearhead
Ratio 1:10
ZD5M5
Motor support
Mounting brackets for MZD 5 motor
Certificates
CE Certificate
Documentation MZD_T2B_090_UXXXLF
Technical datasheet MZD_5T2B_090_UXXXLFB (FR) Technical datasheet MZD_5T2B_090_UXXXLFB (EN-DE)
Documentation MZD Size 5 (90x90)
Technical datasheet MZD T5 (FR) General specification MZD compact geared motor (EN)
