Power of 0.4 to 2.2 KW
5-year warranty*
* The warranty only applies if the VFD is used in an electrical cabinet IP55.
Delivery throughout Europe
Secure payment
English speaker +33535565788
The variable frequency drive (VFD) enables to transform 220V single-phase into 220V 3-phase, so a motor in 220V/380V 3-phase (alternating current) on a standard outlet.
Choose the VFD according to the motor power (from 0.2 kilowatt to 2.2 kW, i.e. 0.25 horsepower to 3 HP).
The VFD also enables to vary the frequency of the supply voltage (50 Hz), and then to vary the base speed of the electric induction motor (button on the front).

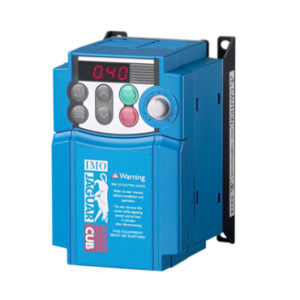

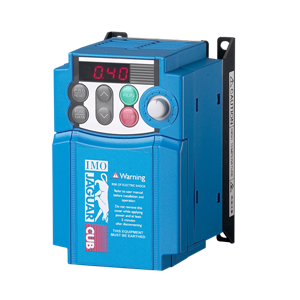

This VFD Jaguar CUB is dedicated to industrial applications requiring a strong starting torque.
Characteristics:
V/F or Vector control, IP 20, Filter CEM optionnal, communication Modbus RTu Integrated
Starting torque 200% to 5 Hz
Frequency of 0.5 to 400Hz
Tolerable overload: 150% during 60 sec, 200 % during 0.5 sec.
Braking transistor integrated and DC injection
Input 220V Single-phase
* The warranty only applies if the VFD is used in an electrical cabinet IP55.
| Reference | KW | HP | In (output) | Supply (V) | Kg | Size H x W x D |
| CUB3A1 | 0.4 | 0.5 | 3 A | 200-240 | 0.60 | 120x80x95 |
| CUB5A1 | 0.75 | 1 | 5 A | 200-240 | 0.80 | 120x80x140 |
| CUB8A1 | 1.5 | 2 | 8 A | 200-240 | 1.7 | 130x110x139 |
| CUB11A1 | 2.2 | 3 | 11 A | 200-240 | 2.3 | 180x140x139 |
