Variable-frequency drive single phase & 3 phase 220V VFR050 | EASI-Spare

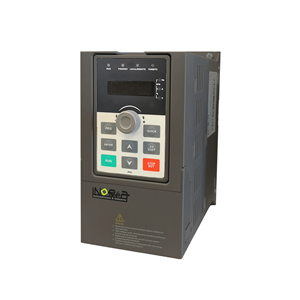

Variable-frequency drive single phase & 3 phase VFR050

New model
Power from 0.75Kw to 5,5Kw
2-year warranty*

Power kW

Reference VFR_050M2_0K75

In stock : 6 products

€179.02 -5%
€170.07 Excl. tax

New model: Variable-frequency drive (VFD)

It offers a triple advantage for managing an induction motor:

The variable-frequency drive enables to transform a 220V Single phase into a 220V 3 phase, in order to use a 220V/380V 3 phase motor (delta connection) on a traditional outlet.
The variable-frequency drive also enables to vary the supply voltage (50Hz) and thus vary the induction electric motor base speed (front button).
The variable-frequency drive manages the motor start and stop phases, in order to avoid power peaks when the engine starts.

Visit our application possibilities: lathe equipment, milling machine, machine tool, wood machine, compressor, car lift, tire machine, conveyor, mixer... See wiring examples

Characteristics:

Supply: 220-230V (±10%), 50/60Hz (±5%)
Motor setting by auto-tuning
Braking transistor to add
Direct current injection
8 TOR entries (0-24V in PNP or NPN), 3 analogue inputs (0-10V, 4-20mA), 2 transistor outputs, 1 relay output, 2 analogue outputs
Perfect vector control without sensor
Low-frequency torque at 0.25 Hz
Protection against short circuit
V/F (automatic slip compensation); or open-loop vector control or closed-loop vector control
Output frequency from 0.00 to 300.00Hz in vector control, 0.00 à 3200,00Hz in constant torque application U/F (stability±0.50 Hz)
Starting torque 150% to 0.5 Hz
Overload capacity: 150% during 1 min, 180% during 2 s
Keyboard monitoring, terminal block control, MODBUS communication; (RUN, STOP, AV, AR, frequency, emergency stop...)
Operation in 7 speed ranges, PID...

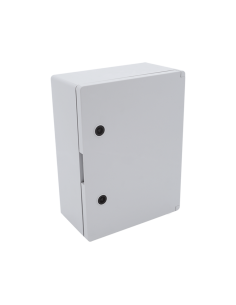

*The warranty only applies if the inverter is used in an IP55 electrical cabinet.

Reference

Power

Dimension (mm)
Height*Width*Depth

VFR_050M2_0K75

0,75 KW

4 A

185/90/154

VFR_050M2_1K5

1,5 KW

7 A

185/90/174

VFR_050M2_2K2

2,2 KW

10 A

185/90/174

VFR_050M2_4K

4 KW

16 A

260/120/190

VFR_050M2_5K5

5,5 KW

25 A

360/220/210

Documentation

documentation technic-achat Complete instruction
Wiring diagram

Tutorials

documentation technic-achat Application

Certificates

certificat technic-achat CE Certificate

Online support

aide en ligne Technic-Achat Different monitoring modes for inverters
Braking and resistance on an inverter
How to install an inverter on a combination woodworking machine?
How to protect your frequency inverter?
Lathe tutorial
How to monitor in a multi-speed way a frequency inverter?
How to choose a single-phase or 3-phase inverter?
aide en ligne Technic-Achat Is it possible to use an inverter on multiple motors?
The different startup types of 3-phase induction motors
What is PID?

Videos

220V single-phase entry 220V 3-phase output

Power kW

0.75 kW 1.5 kW 2.2 kW 4 kW 5.5 kW

Combinations	Power kW	Reference	Stock	Price	Add to cart
Power kW : 0.75 kW Reference : VFR_050M2_0K75 Stock : 6	0.75 kW	VFR_050M2_0K75	Available now Stock : 6	€179.02 Tax excl. €170.07 Tax excl. - 5%	€179.02 Tax excl. €170.07 Tax excl. (- 5%)
Power kW : 1.5 kW Reference : VFR_050M2_1K5 Stock : 6	1.5 kW	VFR_050M2_1K5	Available now Stock : 6	€205.11 Tax excl. €194.85 Tax excl. - 5%	€205.11 Tax excl. €194.85 Tax excl. (- 5%)
Power kW : 2.2 kW Reference : VFR_050M2_2K2 Stock : 9	2.2 kW	VFR_050M2_2K2	Available now Stock : 9	€256.79 Tax excl. €243.95 Tax excl. - 5%	€256.79 Tax excl. €243.95 Tax excl. (- 5%)
Power kW : 4 kW Reference : VFR_050M2_4K Stock : 7	4 kW	VFR_050M2_4K	Available now Stock : 7	€325.75 Tax excl. €309.46 Tax excl. - 5%	€325.75 Tax excl. €309.46 Tax excl. (- 5%)
Power kW : 5.5 kW Reference : VFR_050M2_5K5 Stock : 7	5.5 kW	VFR_050M2_5K5	Available now Stock : 7	€495.71 Tax excl. €470.92 Tax excl. - 5%	€495.71 Tax excl. €470.92 Tax excl. (- 5%)
