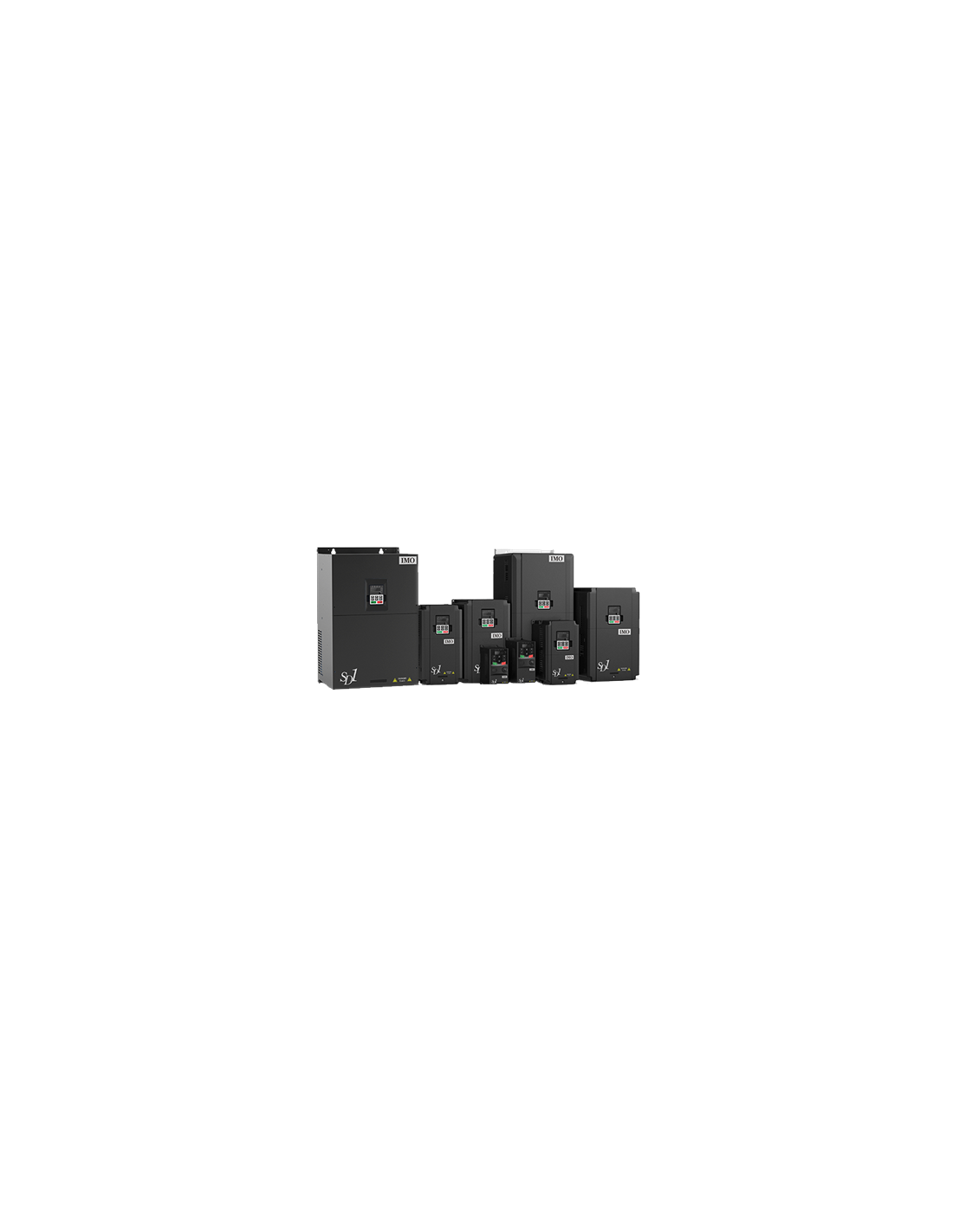

Variable frequency drive SD1 3-phase 400V

Variable frequency drive 3-phase
Power of 0.75-45 KW, with STO input (security integrated)

Power kW

Reference SD1_2A_43

Pre-order

€264.50 -5%
€251.28 Excl. tax

The VFD enables to vary the frequency of the supply voltage (50 Hz), and then to vary the base speed of the electric induction motor (button on the front). It is ideal for starting thanks to starting phases.
This VFD SD1 (IMO) is made for uses where the economical criteria is dominant: filter integrated in standard, potentiometer on front panel, DIN rail mouting, 400 Vac 3-phase, forced ventilation, possible PC setup software.

Characteristics:
-1 security input STO integrated (SIL2/SIL3-mode dependant).
- torque vector control
- DIN rail mountable (<2.2kW)
- 1 input HDI, 2 analogue inputs, 2 output relays, transistor output, 1 to 2 analogue outputs, 4 to 5 digital inputs, PNP/NPN selectable
- In Built Modbus RTU / RS485
- PID control as standard
- Up to 150% starting torque
- Safety Circuit (SIL2/SIL3 - model dependant)
- DC injection braking
- CE, RoHS & Reach Compliant, TUV Approved, UL/cUL
- 2-year warranty*

* The warranty only applies if the VFD is used in an electrical cabinet IP55.

Reference

Input current
(A)

Output current
(A)

Protection
(A)

Size
H x W x D (mm)

SD1_2A_43

0.75

3.4

2.5

185x140.5x80

SD1_4A_43

1.5

4.2

185x140.5x80

SD1_5A_43

2.2

5.8

5.5

185x140.5x80

SD1_9A_43

5.5

13.5

9.5

256x167x146

SD1_14A_43

5.5

7.5

19.5

256x167x146

SD1_18A_43

7.5

18.5

320x196.3x170

SD1_25A_43

320x196.3x170

SD1_32A_43

320x196.3x170

SD1_38A_43

18.5

100

340.6x184.3x200

SD1_45A_43

100

340.6x184.3x200

SD1_60A_43

125

400x202x250

SD1_75A_43

160

400x202x250

SD1_92A_43

200

560x238x282

Accessories

SD1_KP

Keyboard for inverter

SD1_KP_CPY

Keyboard for inverter with copy function

SD1_KP_MB

Keyboard support

SD1_RFC3_25S

filter for assembly on panel 1-phase

SD1_RFC3_6S

filter for assembly on panel 3-phase

Documentation

documentation technic-achat Technical datasheet

Certificates

certificat technic-achat CE Certificate

Softwares & 3D

fichier 3D technic-achat Programming software PC

Online support

aide en ligne Technic-Achat The different monitoring modes for inverters
Braking and resistance on an inverter
How to install an inverter on a woodworking machine?
How to protect your inverter?
Lathe tutorial
How to do a multi-speed control on an inverter?
How to choose a single/3-phase inverter?
aide en ligne Technic-Achat How to connect a remote control on an inverter?

Videos

Combinations	Power kW	Reference	Stock	Price	Add to cart
Power kW : 0.75 kW Reference : SD1_2A_43 Stock : 0	0.75 kW	SD1_2A_43	Available later	€264.50 Tax excl. €251.28 Tax excl. - 5%	€264.50 Tax excl. €251.28 Tax excl. (- 5%)
Power kW : 1.5 kW Reference : SD1_4A_43 Stock : 1	1.5 kW	SD1_4A_43	Available now Stock : 1	€280.46 Tax excl. €266.44 Tax excl. - 5%	€280.46 Tax excl. €266.44 Tax excl. (- 5%)
Power kW : 2.2 kW Reference : SD1_5A_43 Stock : 1	2.2 kW	SD1_5A_43	Available now Stock : 1	€310.57 Tax excl. €295.04 Tax excl. - 5%	€310.57 Tax excl. €295.04 Tax excl. (- 5%)
Power kW : 4 kW Reference : SD1_9A_43 Stock : 0	4 kW	SD1_9A_43	Available later	€407.17 Tax excl. €386.81 Tax excl. - 5%	€407.17 Tax excl. €386.81 Tax excl. (- 5%)
Power kW : 5.5 kW Reference : SD1_14A_43 Stock : 0	5.5 kW	SD1_14A_43	Available later	€500.35 Tax excl. €475.33 Tax excl. - 5%	€500.35 Tax excl. €475.33 Tax excl. (- 5%)
Power kW : 7.5 kW Reference : SD1_18A_43 Stock : 0	7.5 kW	SD1_18A_43	Available later	€614.23 Tax excl. €583.52 Tax excl. - 5%	€614.23 Tax excl. €583.52 Tax excl. (- 5%)
Power kW : 11 kW Reference : SD1_25A_43 Stock : 0	11 kW	SD1_25A_43	Available later	€748.79 Tax excl. €711.35 Tax excl. - 5%	€748.79 Tax excl. €711.35 Tax excl. (- 5%)
Power kW : 15 kW Reference : SD1_32A_43 Stock : 0	15 kW	SD1_32A_43	Available later	€889.24 Tax excl. €844.78 Tax excl. - 5%	€889.24 Tax excl. €844.78 Tax excl. (- 5%)
Power kW : 18.5 kW Reference : SD1_38A_43 Stock : 0	18.5 kW	SD1_38A_43	Available later	€1,137.34 Tax excl. €1,080.47 Tax excl. - 5%	€1,137.34 Tax excl. €1,080.47 Tax excl. (- 5%)
Power kW : 22 kW Reference : SD1_45A_43 Stock : 0	22 kW	SD1_45A_43	Available later	€1,283.62 Tax excl. €1,219.44 Tax excl. - 5%	€1,283.62 Tax excl. €1,219.44 Tax excl. (- 5%)
Power kW : 30 kW Reference : SD1_60A_43 Stock : 0	30 kW	SD1_60A_43	Available later	€1,604.49 Tax excl. €1,524.27 Tax excl. - 5%	€1,604.49 Tax excl. €1,524.27 Tax excl. (- 5%)
Power kW : 37 kW Reference : SD1_75A_43 Stock : 0	37 kW	SD1_75A_43	Available later	€1,849.48 Tax excl. €1,757.01 Tax excl. - 5%	€1,849.48 Tax excl. €1,757.01 Tax excl. (- 5%)
Power kW : 45 kW Reference : SD1_92A_43 Stock : 0	45 kW	SD1_92A_43	Available later	€1,993.86 Tax excl. €1,894.17 Tax excl. - 5%	€1,993.86 Tax excl. €1,894.17 Tax excl. (- 5%)
Power kW : filter for panel assembly 1-phase Reference : SD1_RFC3_25S Stock : 0	filter for panel assembly 1-phase	SD1_RFC3_25S	Available later	€19.67 Tax excl. €18.69 Tax excl. - 5%	€19.67 Tax excl. €18.69 Tax excl. (- 5%)
Power kW : filter for panel assembly 3-phase Reference : SD1_RFC3_6S Stock : 0	filter for panel assembly 3-phase	SD1_RFC3_6S	Available later	€26.21 Tax excl. €24.90 Tax excl. - 5%	€26.21 Tax excl. €24.90 Tax excl. (- 5%)
Power kW : keyboard for inverter Reference : SD1_KP Stock : 0	keyboard for inverter	SD1_KP	Available later	€17.11 Tax excl. €16.25 Tax excl. - 5%	€17.11 Tax excl. €16.25 Tax excl. (- 5%)
Power kW : keyboard for inverter with copy function Reference : SD1_KP_CPY Stock : 0	keyboard for inverter with copy function	SD1_KP_CPY	Available later	€32.76 Tax excl. €31.12 Tax excl. - 5%	€32.76 Tax excl. €31.12 Tax excl. (- 5%)
Power kW : keyboard support Reference : SD1_KP_MB Stock : 0	keyboard support	SD1_KP_MB	Available later	€2.85 Tax excl. €2.71 Tax excl. - 5%	€2.85 Tax excl. €2.71 Tax excl. (- 5%)
