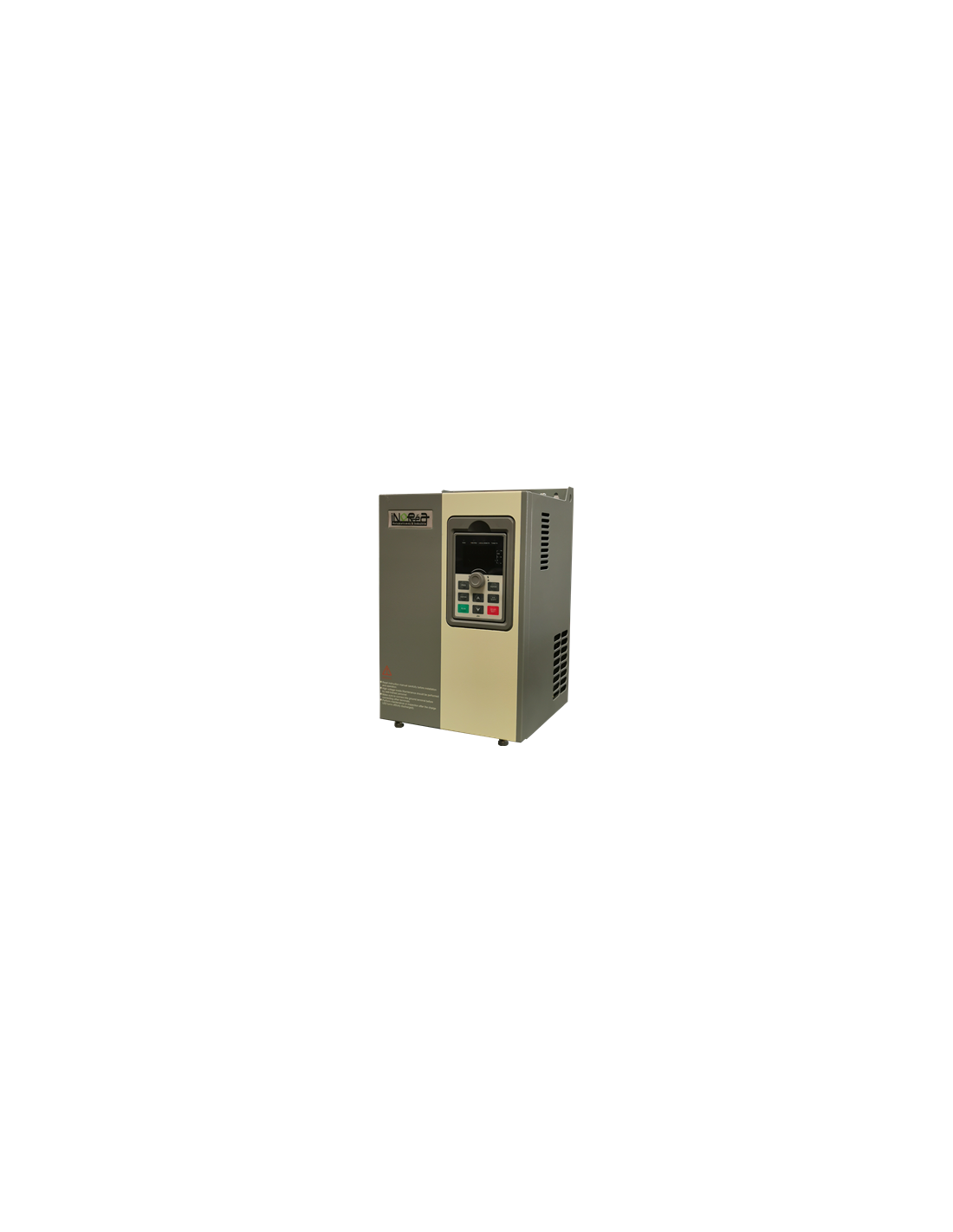

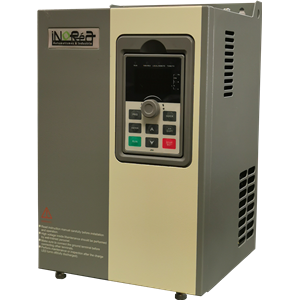

3-phase variable-frequency drive 380V-440V

Power from 11 kW to 160 kW
2-year warranty*

Power kW

Reference VFR_050T4_11K0

Last items in stock

€558.57 -5%
€530.64 Excl. tax

New model: Variable-frequency drive (VFD)

Perfect vector control without sensor.
Low-frequency torque at 0.25 Hz
Protection against short circuit
Motor setting by auto-tuning
Control the blower activation.
Supply: 380-420V (±10%), 50/60Hz (±5%)
V/F (automatic slip compensation); or open-loop vector control or closed-loop vector control
Output frequency from 0.00 to 300.00Hz in vector control, 0.00 à 3200,00Hz in constant torque application U/F (stability±0.50 Hz)
Starting torque 150% to 0.5 Hz
Overload capacity: 150% during 1 min, 180% during 2 s
8 TOR entries (0-24V in PNP or NPN), 3 analogue inputs (0-10V, 4-20mA), 2 transistor outputs, 1 relay output, 2 analogue outputs
Braking transistor to add and direct current injection
Keyboard monitoring, terminal block control, MODBUS communication; (RUN, STOP, AV, AR, frequency, emergency stop...)
Operation in 7 speed ranges, PID...

* The warranty only applies if the inverter is used in an IP55 electrical cabinet.

Reference

Power

Dimension (mm)
Height*Width*Depth

Weight (kg)

VFR_050T4_11K0

11 kW

25 A

260/120/190

2.7 kg/div>

VFR_050T4_15K0

15 kW

32 A

300/190/198

7.2 kg/div>

VFR_050T4_18K0

18,5 kW

38 A

350/210/198

9.5 kg/div>

VFR_050T4_22K0

22 kW

45 A

350/210/198

9.5 kg/div>

VFR_050T4_30K0

30 kW

60 A

400/240/223

13 kg/div>

VFR_050T4_37K0

37 kW

75 A

400/240/223

13 kg/div>

VFR_050T4_45K0

45 kW

90 A

520/300/283

42 kg/div>

VFR_050T4_55K0

55 kW

110 A

520/300/283

42 kg/div>

VFR_050T4_75K0

75 kW

150 A

520/300/283

42 kg/div>

VFR_050T4_93K0

93 kW

170 A

575/355/328

58 kg/div>

VFR_050T4_110K0

110 kW

210 A

575/355/328

58 kg/div>

VFR_050T4_132K0

132 kW

250 A

720/400/368/

58 kg/div>

VFR_050T4_160K0

160 kW

300 A

820/480/398

108 kg/div>

Documentation

documentation technic-achat Complete instruction
Wiring diagram

Tutorials

documentation technic-achat Control external buttons
Multi-speed control
Control an analogue reference
Application examples

Certificates

certificat technic-achat CE Certificate

Online support

aide en ligne Technic-Achat Different monitoring modes of inverters
Braking and resistance on an inverter
How to install an inverter on a combination woodworking machine?
How to protect your frequency inverter?
Lathe tutorial
How to monitor in a multi-speed way a frequency inverter?
How to choose a single-phase or 3-phase inverter?
aide en ligne Technic-Achat How to connect a remote control on an inverter?

Videos

Combinations	Power kW	Reference	Stock	Price	Add to cart
Power kW : 11 kW Reference : VFR_050T4_11K0 Stock : 2	11 kW	VFR_050T4_11K0	Available now Stock : 2	€558.57 Tax excl. €530.64 Tax excl. - 5%	€558.57 Tax excl. €530.64 Tax excl. (- 5%)
Power kW : 15 kW Reference : VFR_050T4_15K0 Stock : 2	15 kW	VFR_050T4_15K0	Available now Stock : 2	€650.69 Tax excl. €618.16 Tax excl. - 5%	€650.69 Tax excl. €618.16 Tax excl. (- 5%)
Power kW : 18.5 kW Reference : VFR_050T4_18K0 Stock : 2	18.5 kW	VFR_050T4_18K0	Available now Stock : 2	€769.52 Tax excl. €731.04 Tax excl. - 5%	€769.52 Tax excl. €731.04 Tax excl. (- 5%)
Power kW : 22 kW Reference : VFR_050T4_22K0 Stock : 0	22 kW	VFR_050T4_22K0	Available later	€779.88 Tax excl. €740.89 Tax excl. - 5%	€779.88 Tax excl. €740.89 Tax excl. (- 5%)
Power kW : 30 kW Reference : VFR_050T4_30K0 Stock : 0	30 kW	VFR_050T4_30K0	Available later	€1,153.67 Tax excl. €1,095.99 Tax excl. - 5%	€1,153.67 Tax excl. €1,095.99 Tax excl. (- 5%)
Power kW : 37 kW Reference : VFR_050T4_37K0 Stock : 0	37 kW	VFR_050T4_37K0	Available later	€1,213.76 Tax excl. €1,153.07 Tax excl. - 5%	€1,213.76 Tax excl. €1,153.07 Tax excl. (- 5%)
Power kW : 45 kW Reference : VFR_050T4_45K0 Stock : 0	45 kW	VFR_050T4_45K0	Available later	€1,451.35 Tax excl. €1,378.78 Tax excl. - 5%	€1,451.35 Tax excl. €1,378.78 Tax excl. (- 5%)
Power kW : 55 kW Reference : VFR_050T4_55K0 Stock : 1	55 kW	VFR_050T4_55K0	Available now Stock : 1	€2,307.53 Tax excl. €2,192.15 Tax excl. - 5%	€2,307.53 Tax excl. €2,192.15 Tax excl. (- 5%)
Power kW : 75 kW Reference : VFR_050T4_75K0 Stock : 0	75 kW	VFR_050T4_75K0	Available later	€2,409.50 Tax excl. €2,289.03 Tax excl. - 5%	€2,409.50 Tax excl. €2,289.03 Tax excl. (- 5%)
Power kW : 93 kW Reference : VFR_050T4_93K0 Stock : 1	93 kW	VFR_050T4_93K0	Available now Stock : 1	€2,480.50 Tax excl. €2,356.48 Tax excl. - 5%	€2,480.50 Tax excl. €2,356.48 Tax excl. (- 5%)
Power kW : 110 kW Reference : VFR_050T4_110K0 Stock : 0	110 kW	VFR_050T4_110K0	Available later	€3,386.13 Tax excl. €3,216.82 Tax excl. - 5%	€3,386.13 Tax excl. €3,216.82 Tax excl. (- 5%)
Power kW : 132 kW Reference : VFR_050T4_132K0 Stock : 0	132 kW	VFR_050T4_132K0	Available later	€4,625.00 Tax excl. €4,393.75 Tax excl. - 5%	€4,625.00 Tax excl. €4,393.75 Tax excl. (- 5%)
Power kW : 160 kW Reference : VFR_050T4_160K0 Stock : 0	160 kW	VFR_050T4_160K0	Available later	€5,524.65 Tax excl. €5,248.42 Tax excl. - 5%	€5,524.65 Tax excl. €5,248.42 Tax excl. (- 5%)
