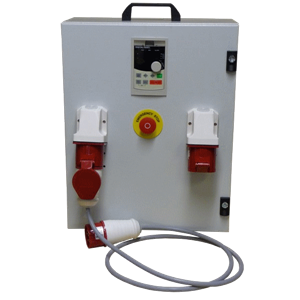

Inverter cabinet 3-phase 380V
Based on a drive VFR050 single/3-phase, this cabinet IP55 is made for using it in harsh environments. It has watertight plugs for the supply and the motor output, making it perfectly autonomous.
Supplied with 2 plugs (3P + Earth: 1 male, 1 female).
Multifunction keyboard controller (start, frequency setting...)
Emergency stop on the front
Stands on a support or on brackets (supplied)
Supply: 380-415V (±15%), 50/60Hz (±5%) - 3P + Earth.
Motor output: female plug 3P + earth.
Emergency stop on the front
Stands on a support or on brackets (supplied)
Supply: 380-415V (±15%), 50/60Hz (±5%) - 3P + Earth.
Motor output: female plug 3P + earth.
Drive characteristics VFR050:
Output frequency 0.00»800.00Hz (stability ±0.50 Hz)
Starting torque 180% at 0.5 Hz
Overload capacity: 150% for 1 min, 200% for 0.1s
Casing ventilation by holes
Box size: H500 x L350 x D300
Reference
Power
In
Size
VFRIP_ARM1T_0K75
0.75 KW
2.7A
H500xL400xP200
VFRIP_ARM1T_1K5
1.5 KW
3.5A
H500xL400xP200
VFRIP_ARM1T_2K2
2.2 KW
5A
H500xL400xP200
VFRIP_ARM1T_4K0
4 KW
8.5A
H500xL400xP200
VFRIP_ARM2T_5K5
5.5 KW
13A
H600xL400xP250
VFRIP_ARM2T_7K5
7.5 KW
16A
H600xL400xP250
