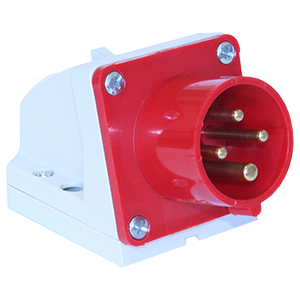

Industrial plugs and sockets Serie 690 type
These items represent sockets and outlets especially developped for mounting inside industrial buildings or outside.
Technical characteristics:
-Material: technopolymere, resistance to UV rays
-Halogen-free
-Resistance to mechanical shocks IK 08 (shock up to 5j)
-Protection rating: IP44 or IP67
-Glow Wire Test: 650/850 °C
-Operating temperature conform with norm EN 60309: minimum -25°C, maximum +40°C
-Can operate at a maximum temperature of +80°C (+100°C for 1 hour)
-Conform with norms: EN 60309-1, EN 60309-2, EN 60529, EN 50102, EN 60947-3
-Conform with the main requirements of the Directive B.T2006/95/CE and RoHS 2002/95/CE
* Supplied with seal
* It is recommended to fix them with self tapping screws 3,5X16 or MA 4X20 (not supplied)
Reference
Supplier reference
Type
Protection
rating
rating
Amperage
Product form
FIC316_3PTD44
EC69072
Mobile socket
right male
IP44
16 A
FIC316_3PTD67
EC69073
Mobile socket
right male
IP67
16 A
FIC332_3PTD44
EC69076
Mobile socket
right male
IP44
32 A
FIC332_3PTD67
EC69077
Mobile socket
right male
IP67
32 A
FIC363_3PTD67
EC69370
Mobile socket
right male
IP67
63 A
FIC3125_3PTD67
EC69673
Mobile socket
right male
IP67
125 A
FIC316_3PTBI44
EC514-6
Fixed base socket
inclined male
IP44
16 A
FIC332_3PTBI44
EC524-6
Fixed base socket
inclined male
IP44
32 A
FIC363_3PTBI67
EC693701
Fixed base socket
inclined male
IP67
63 A
FIC3125_3PTBI67
EC544-6
Fixed base socket
inclined male
IP67
125 A
PRI316_3PTBI44
EC690521
Fixed plug base
inclined on wall
female
IP44
16 A
PRI316_3PTBI67
EC690531
Fixed plug base
inclined on wall
female
IP67
16 A
PRI332_3PTBI44
EC690561
Fixed plug base
inclined on wall
female
IP44
32 A
PRI332_3PTBI67
EC690571
Fixed plug base
inclined on wall
female
IP67
32 A
PRI363_3PTBI67
EC134-6
Fixed plug base
inclined on wall
female
IP67
63 A
PRI3125_3PTBI67
EC144-6
Fixed plug base
inclined on wall
female
IP67
125A
PRI316_3PTD44
EC69082
Mobile plug
right female
IP44
16 A
PRI316_3PTD67
EC69083
Mobile plug
right female
IP67
16 A
PRI332_3PTD44
EC69086
Mobile plug
right female
IP44
32 A
PRI332_3PTD67
EC69087
Mobile plug
right female
IP67
32 A
PRI363_3PTD67
EC69380
Mobile plug
right female
IP67
63 A
PRI3125_3PTD67
EC69683
Mobile plug
right female
IP67
125 A
PRI316_3PTE67
EC69053
Mounting plug
female
IP67
16 A
PRI332_3PTE67
EC69058
Mounting plug
female
female
IP67
32 A
PRI363_3PTE67
EC69350
Mounting plug
female
female
IP67
63 A
