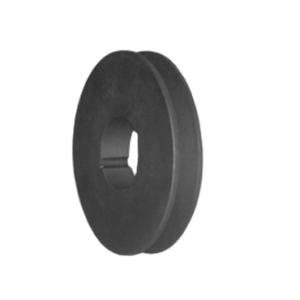

SPZ v-belt pulley 1 groove with hub
SPZ v-belt pulley 1 groove with hub
  • -5%
SPZ v-belt pulley 1 groove with hub
SPZ v-belt pulley 1 groove with hub

SPZ v-belt pulley 1 groove with hub

SPZ v-belt pulley 1 groove with hub

More
Pitch diameter
SPZ_050_01_1008
€10.21 -5%
From €9.70 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Technical characteristics:
- Pitch diameter from 50mm to 122mm depending on the model
- 4 types of removable hubs: 1008-1108-1210-1610
- For SPZ type of belt (H: 8mm, W:9.7mm)

Removable hub not supplied, to choose depending on the shaft on which the pulley is put.

ReferencePitch diameter (P)Type of removable hubDe in mmE in mm
SPZ_050_01_100850mm10083522.2
SPZ_060_01_100860mm10083522.2
SPZ_071_01_110871mm11083822.2
SPZ_080_01_121080mm121047.525.4
SPZ_090_01_121090mm121047.525.4
SPZ_100_01_1210100mm121047.525.4
SPZ_106_01_1610106mm16105725.4
SPZ_112_01_1610112mm16105725.4
SPZ_125_01_1610125mm16105725.4
