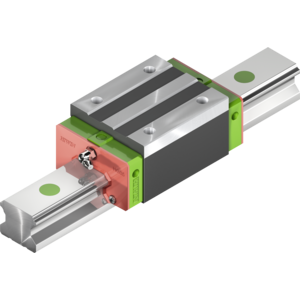

Guideway rail and block type HG20

Linear guideway rail and block Type HG 20

Select your HG20 guideway rail

Reference HGH20CAZ0H

€54.02 -5%
From €51.32 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

Specifications
Customer reviews

The linear guideway HG series offers a high load capacity and high rigidity.
It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Two shapes are available:

the square shape is the high version of the block
the large shape is the flange version

Warning: Blocks and Rails are sold separately
No return or exchange for specific products.
.

Block for linear guideway HG Square
Reference	Shape	H	Dimensions (mm)						Dynamic load capacity (N)	Static load capacity (N)	3D File
Reference	Shape	H	W	B	C	L	L1	M x I	Dynamic load capacity (N)	Static load capacity (N)	3D File
HGH20CAZ0H	Square	30	44	32	36	77.5	50.5	M5 x 6	17 750	27 760
HGH20HAZ0H	Square	30	44	32	50	92.2	65.2	M5 x 6	21 180	35 900

Block for linear guideway HG Large

Reference

Shape

Dimensions (mm)

Dynamic load
capacity (N)

Static load

capacity (N)

Mounting

3D File

HGW20CCZ0H

Large

77.5

50.5

17 750

27 760

Above/
Below

HGW20HCZ0H

Large

92.2

65.2

21 180

35 900

Above/
Below

Associated rail

Guide rail
Reference	Rail length	Screw head position	3D File
HGR20R*	50 <= ... <= 4000mm
HGR20R_0280H	280mm
HGR20R_0460H	460mm
HGR20R_1000H	1000mm
HGR20R_1600H	1600mm
HGR20R_2020H	2020mm
HGR20R_3040H	3040mm
HGR20R_4000H	4000mm
HGR20T*	50 <= ... <= 4000mm
HGR20T_0280H	280mm
HGR20T_0460H	460mm
HGR20T_1000H	1000mm
HGR20T_1600H	1600mm
HGR20T_2020H	2020mm
HGR20T_3040H	3040mm
HGR20T_4000H	4000mm
