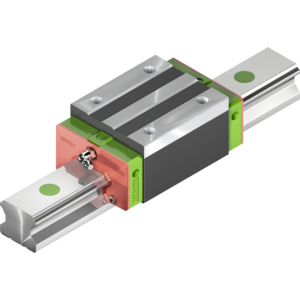

Guideway rail and block type HG25

Linear guideway rail and block Type HG 25

Select your HG25 guideway rail

Reference HGH25CAZ0H

€56.82 -5%
From €53.98 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

Specifications

The linear guideway HG series offers a high load capacity and high rigidity.
It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies.
Two shapes are available:

the square shape is the high version of the block
the large shape is the flange version

Warning: Blocks and Rails are sold separately
No return or exchange for specific products.

Block for linear guideway HG Square
Reference	Shape	H	Dimensions (mm)						Dynamic load capacity (N)	Static load capacity (N)	3D File
Reference	Shape	H	W	B	C	L	L1	M x I	Dynamic load capacity (N)	Static load capacity (N)	3D File
HGH25CAZ0H	Square	40	48	35	35	84	58	M6 x 8	26 480	36 490
HGH25HAZ0H	Square	40	48	35	50	104.6	78.6	M6 x 8	32 750	49 440

Block for linear guideway HG Large

Reference

Shape

Dimensions (mm)

Dynamic load
capacity (N)

Static load

capacity (N)

Mounting

3D File

HGW25CCZ0H

Large

26 480

36 49

Above/
Below

HGW25HCZ0H

Large

104.6

78.6

32 750

49 440

Above/
Below

Associated rail

Guide rail
Reference	Rail length	Screw head position	3D File
HGR25R*	50 <= ... <= 4000mm
HGR25R_0280H	280mm
HGR25R_0460H	460mm
HGR25R_1000H	1000mm
HGR25R_1600H	1600mm
HGR25R_2020H	2020mm
HGR25R_3040H	3040mm
HGR25R_4000H	4000mm
HGR25T*	50 <= ... <= 4000mm
HGR25T_0280H	280mm
HGR25T_0460H	460mm
HGR25T_1000H	1000mm
HGR25T_1600H	1600mm
HGR25T_2020H	2020 mm
HGR25T_3040H	3040 mm
HGR25T_4000H	4000 mm
