Guideway rail type EG 25

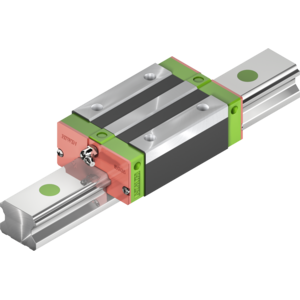

Guideway rail and block Type EG 25
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
Warning: Blocks and Rails are sold separately
No return or exchange for specific products.
.
| Block for linear guideways HG Square | |||||||||||
| Reference | Shape | H | Dimensions (mm) | Dynamic load capacity (N) |
Static load capacity (N) |
3D File | |||||
| W | B | C | L | L1 | M x I | ||||||
| EGH25SA_Z0H | Square | 33 | 48 | 35 | _ | 59.1 | 35.5 | M6 x 9 | 11 400 | 19 500 |  |
| EGH25CA_Z0H | Square | 33 | 48 | 35 | 35 | 82.6 | 59 | M6 x 9 | 16 270 | 32 400 | |
| Block for linear guideways HG Large | ||||||||||||
| Reference | Shape | H | Dimensions (mm) | Dynamic load capacity (N) |
Static load capacity (N) |
Mounting | 3D File | |||||
| W | B | C | L | L1 | M | |||||||
| EGW25SC_Z0H | Large | 33 | 70 | 60 | _ | 59.1 | 35.5 | M8 | 11 400 | 19 500 | Above/ Below |
|
| EGW25CC_Z0H | Large | 33 | 70 | 60 | 35 | 82.6 | 59 | M8 | 16 270 | 32 400 | Above/ Below |
|
Associated rail
| Guide rail | |||
| Reference | Rail length | Screw head position | 3D File |
| EGR25R* | 50 <= ... <= 4000mm |  |
|
| EGR25R_0280H | 280mm | ||
| EGR25R_0460H | 460mm | ||
| EGR25R_1000H | 1000mm | ||
| EGR25R_1600H | 1600mm | ||
| EGR25R_2020H | 2020mm | ||
| EGR25R_3040H | 3040mm | ||
| EGR25R_4000H * | 4000mm | ||
| EGR25T* | 50 <= ... <= 4000mm |  |
|
| EGR25T_0280H | 280mm | ||
| EGR25T_0460H | 460mm | ||
| EGR25T_1000H | 1000mm | ||
| EGR25T_1600H | 1600mm | ||
| EGR25T_2020H | 2020mm | ||
| EGR25T_3040H | 3040mm | ||
| EGR25T_4000H * | 4000mm | ||
* On quote request
| General documentation | Accuracy class | Accessories |
 |
|
|
| Dimensions | Sizing support | Quote request |
|
 |
|
| Online support | Tutorial | |
| How to choose your linear axis? | ||
