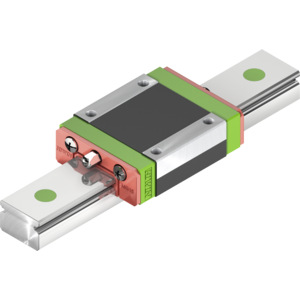

Linear guideway rail and block Type MG 12
Delivery throughout Europe
Secure payment
English speaker +33535565788
Tiny and light weight, suitable for miniature equipment. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
MGN series is available for various applications, such as semiconductor equipments, PCB /IC equipments, medication, robotics, measuring equipments, automation equipments, and other miniature sliding machinery.
Construction of MGN series:
Warning: Blocks and Rails are sold separately
No return or exchange for specific products.
.
| Block for linear guideways HG Square | |||||||||||
| Reference | Shape | H | Dimensions (mm) | Dynamic load capacity (N) |
Static load capacity (N) |
3D File | |||||
| W | B | C | L | L1 | M x I | ||||||
| MGN12CZ0HM | Standard | 13 | 27 | 20 | 15 | 34.7 | 21.7 | M3 x 3.5 | 2 840 | 3 920 |  |
| MGN12HZ0HM | Standard | 13 | 27 | 20 | 20 | 45.5 | 32.4 | M3 x 3.5 | 3 720 | 5 880 | |
Associated rail
| Guideway rail | |||
| Reference | Rail length | Screw head position | 3D File |
| MGR12R* | 70 <= ... <= 1995mm |  |
|
| MGNR12R_0195HM | 195mm | ||
| MGNR12R_0495HM | 495mm | ||
| MGNR12R_0995HM | 995mm | ||
| MGNR12R_1495HM | 1495mm | ||
| MGNR12R_1995HM | 1995mm | ||
* On quote request
| Technical datasheet | Sizing support | Quote request |
 |
 |
|
| Online support | Tutorial | |
| How to choose your linear axis? | ||
