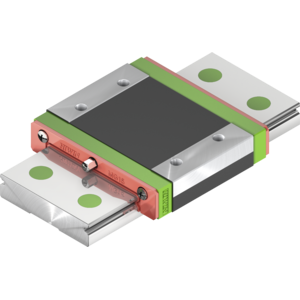

Linear guideway rail and block Type MG 07
Delivery throughout Europe
Secure payment
English speaker +33535565788
MGW series can handle heavier load torque, in comparison to MGN series, due to/thanks to its larger rail. This guideway rail can sustain loads from all directions and offer high rigidity and high accuracy.
MGW series is available for various applications, such as semiconductor equipments, PCB /IC equipments, medication, robotics, measuring equipments, automation equipments, and other miniature sliding machinery.
Construction of MGW series:
Warning: Blocks and Rails are sold separately
No return or exchange for specific products.
| Block for linear guideways HG Square | |||||||||||
| Reference | Shape | H | Dimensions (mm) | Dynamic load capacity (N) |
Static load capacity (N) |
3D File | |||||
| W | B | C | L | L1 | M x I | ||||||
| MGW07CZ0HM | Large | 9 | 25 | 19 | 10 | 31.2 | 21 | M3 x 3 | 1 370 | 2 060 |  |
| MGW07HZ0HM | Large | 9 | 25 | 19 | 19 | 41 | 30.8 | M3 x 3 | 1 770 | 3 140 | |
Associated rail
| Guideway rail | |||
| Reference | Rail length | Screw head position | 3D File |
| MWR07R* | 80 <= ... <= 590mm |  |
|
| MWR07R_200HM | 200mm | ||
| MWR07R_500HM | 500mm | ||
| MWR07R_590HM | 590mm | ||
* On quote request
| Technical datasheet | Sizing support | Quote request |
 |
 |
|
| Online support | Tutorial | |
| How to choose your linear axis? | ||
