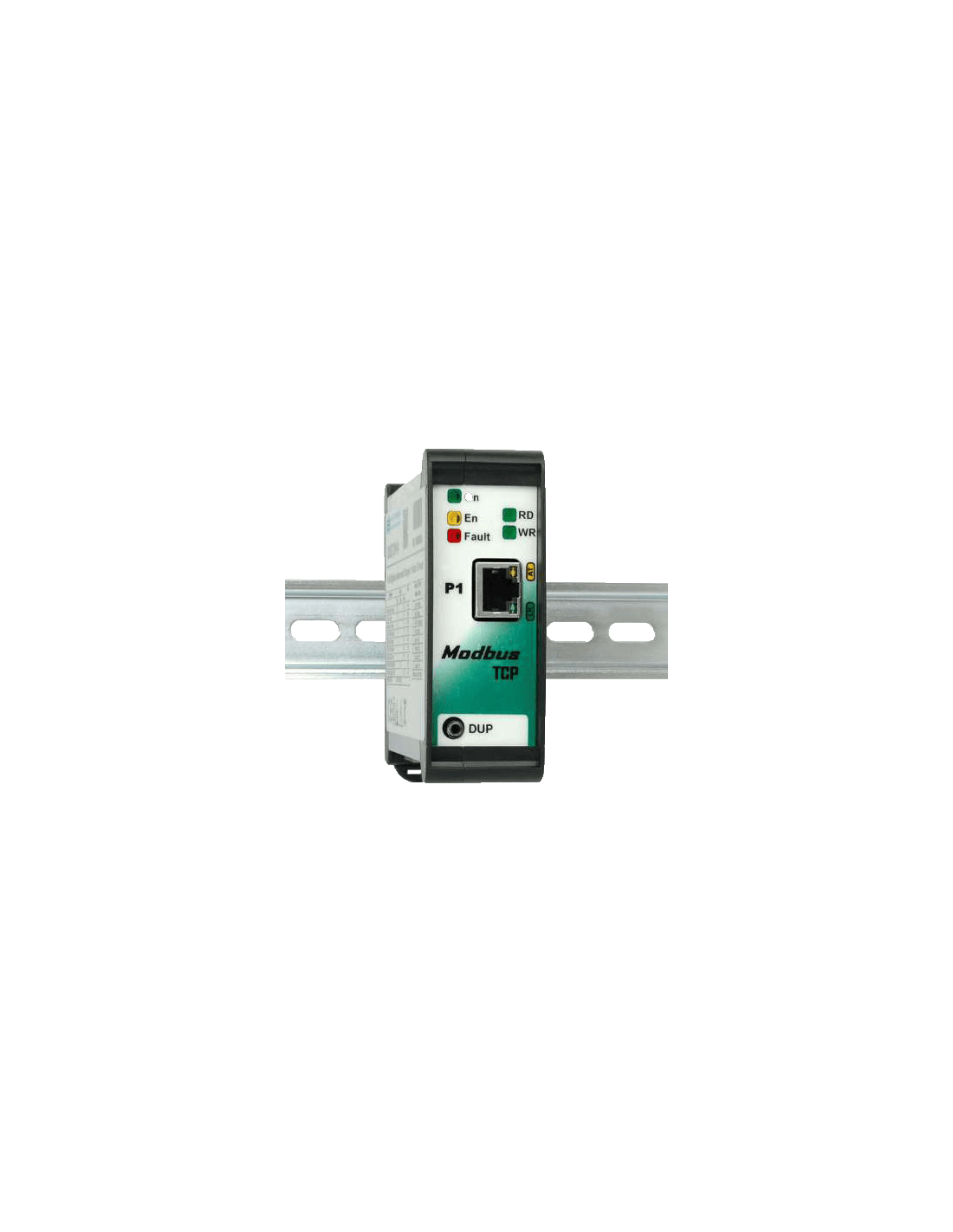

The DDS7xM series stepper motor drives allow an accurate and complete motor control through the industrial Ethernet Modbus TCP/IP protocol. Modbus TCP/IP is an open and easy to implement industrial communication protocol based on the client-server architecture. The messages are encapsulated within the standard TCP/IP telegram and can be transmitted through the common Ethernet networks. Many PLC and HMI of the last generation natively support the Modus TCP/IP protocol.
The drive gets advantage from full digital technology and vector control technique to minimize motor vibrations and noise. It can be easily integrated in the modern industrial 4.0 applications also for its compact size and quick installation on DIN rail.
The DDS7 model includes 5 digital inputs, 2 digital outputs and 1 analogue input and is protected against over or under-voltage, over-temperature, short-circuits.
The communication speed reaches 100Mbit/s and it is possible to update Position, Velocity and Torque set points with a cycle time of less than 1ms.
The drive setting and diagnostics are possible with the use of the free Omni Automation IDE software.
A model with an encoder is available on our website, which can con control closed loop motor.
