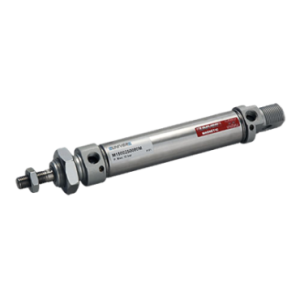

Micro pneumatic cylinder ISO 6432 double acting Ø20 - Ø25mm

Diameter from 20 to 25mm
Stroke from 10 to 500mm

→ Product unavailable? Request a quote.

More
Stroke of the cylinder
Diameter of the rod
PVR643220010D
€49.18 -5%
From €46.72 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Cylinder ISO 6432 (CETOP Standard) Ø 20-25mm, double acting.

No return or exchange.


Inside diameter
(mm)
Outside diameter
(mm)
Rod diameter
(mm)
Pushing force
(Kg)
Pulling force
(Kg)
Standard stroke
(mm)
Connector diameter
Reference
3D File

Ø 20mm

21,6
M8 x 1,25
14,8
14
50, 80, 100, 160, 200, 250, 300, 500
G 1/8
PVR643220XXXD
Dimensions moteur alternatif 3000 tr

Ø 25mm

26,6
M10 x 1,25
25
22
50, 80, 100, 160, 200, 250, 300, 500
G 1/8
PVR643225XXXD
Dimensions moteur alternatif 3000 tr
Accessories
Right-hand flanges
flasques droit pour microvérins
PVR6432FD_2025
(MF-12020)
Bracket
équerre pour microvérins
PVR6432EE_2025
(MF-13020)
Back clevis
chape arrière pour microvérins
PVR6432CB_2025
(MF-21020)
Front clevis
chape avant pour microvérins
PVR6432CA_20
(MF-15020)


PVR6432CA_25
(KF-15032)
Female spherical bearing
rotule femelle pour microvérins
PVR6432RF_20
(MF-17020)


PVR6432RF_25
(KF-17032)
 Fixing bracket
Reference
Ø
Supplier reference
PNDET_SUP_D20DF
20
DH-M20
PNDET_SUP_D25DF
25
DH-M25

  Sensor
Reference
Ø
Characteristics
PNDET_DH7_PNO24C3
12-16-20-25
3 wires PNP 24 DC NO
PNDET_DH2_NO230C2
12-16-20-25
2 wires 230V
