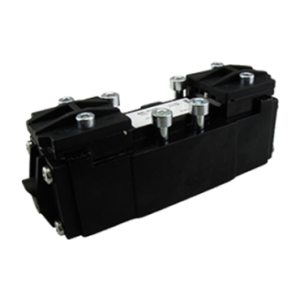

BE pneumatic valve
ISO 5599
- Spool system: standard application
- Mixed system: suitable for a higher number of cycles, higher pressure and a better response time than a spool system for commutation.
→ Product unavailable? Request a quote.
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Characteristics:
- Operating temperature: -10 ÷ +50°C
- Fluid:
filtered air 50µm (mixed system)
filtered air 50µm, with or without dehumidification (spool system)
- Commutation system: spool system (standard application), mixed system (suitable for a higher number of cycles, higher pressure and a better response time than a spool system for commutation)
- Maximum pressure: 10bar
- Connections: ISO 5599/1 interface
- Valve body: Acetalic resin coated with zamak
- Seals: NBR and polyurethane (mixed system), NBR (spool system)
- Manual override: impulse screw - 2 positions (BE), recessed button - 1 position (BE12)
Size 1
Size 2
Size 3
Size 4
Rated diameter (mm)
8
10
15
19
Rated flow rate (NI/min)
1480
2300
4200
6600
Reference
Diagram
Size
Way
Pressure
Mixed system
BE-3100
1
5/2
2÷10
BE-4100
2
5/2
2,3÷10
BE-5100
monostable spring return
3
5/2
2,5÷10
BE-6100
4
5/2
3÷10
-
BE-3150
1
5/2
1÷10
BE-4150
bistable electric control / pneumatic return
2
5/2
1÷10
BE-5150
3
5/2
1÷10
BE-6150
4
5/2
1,3÷10
-
BE-3170
1
5/2
2÷10
BE-4170
2
5/2
1,8÷10
BE-5170
differential bistable
3
5/2
2,2÷10
BE-6170
4
5/2
2÷10
Spool system
BE-3800
1
5/2
1,8÷10
BE-4800
monostable spring return
2
5/2
2÷10
BE-5800
3
5/2
2,2÷10
BE-6800
4
5/2
2,8÷10
-
BE-3850
1
5/2
0,8÷10
BE-4850
bistable electric control / pneumatic return
2
5/2
1÷10
BE-5850
3
5/2
0,8÷10
BE-6850
4
5/2
1÷10
-
BE-3870
1
5/2
1,5÷10
BE-4870
differential bistable
2
5/2
1,8÷10
BE-5870
3
5/2
1,5÷10
BE-6870
4
5/2
2,7÷10
