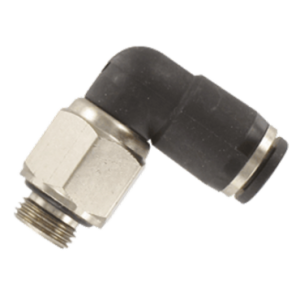

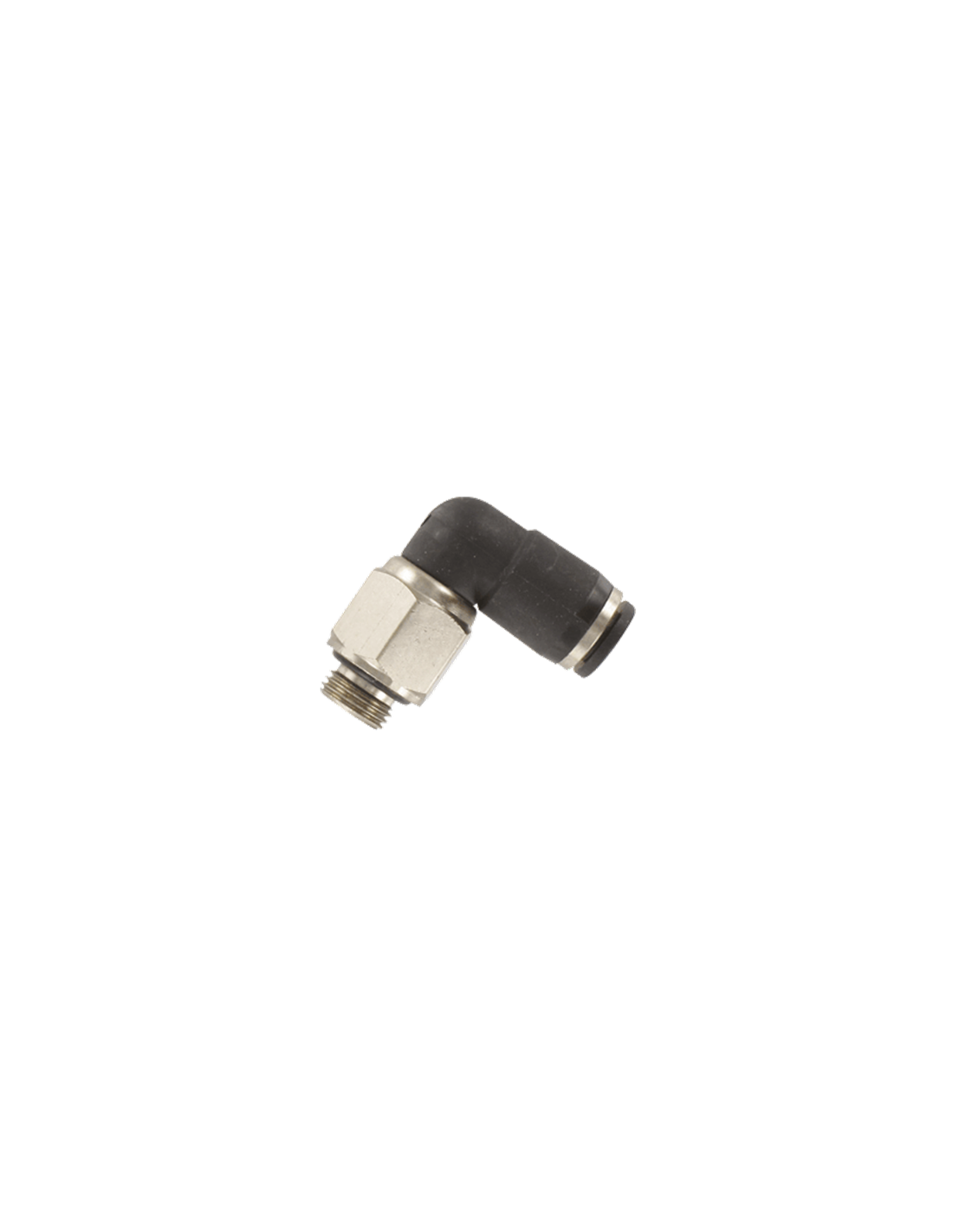

Instant pneumatic connector rotary male bracket

Pneumatic connectors are used for indexing tables, rotary plates and industrial robots.

Characteristics:
  • Resin housing
  • Brass thread with seal mounted
  • Diameter of the tube: from 4 to 12 mm
  • Connection: M5 to 3/8
  • Vacuum resistance: -750 mm Hg
  • Operating maximum pressure: 9 BAR
  • Working temperature: -0° / + 60°C
  • Max rotation speed (RPM): depends on the diameter



Reference
         ØD
         ØR
         ØF
         ØP
       C
       A
     B
      HxØ
   RPM
Orif
Ø mm
Tube connector Ø 4 mm
PRA_ETCYP_04M5H
4
M5
20.2
10.4
16
3.5
20.7
12x13
500
2
PRA_ETCYP_04G18
4
1/8
20.2
10.4
16
6
22
14
500
3
For tube Ø 6 mm
PRA_ETCYP_06M5H
6
M5
22.9
12.4
17
3.5
24.2
14x15
500
2
PRA_ETCYP_06G14
6
1/4
22.9
12.4
17
8
26.2
17
500
4
PRA_ETCYP_06G18
6
1/8
22.9
12.4
17
6
26.2
14
500
4
Tube connector Ø 8 mm
PRA_ETCYP_08G14
8
1/4
25.9
14.4
18.5
8
32.6
17
400
6
PRA_ETCYP_08G18
8
1/8
25.9
14.4
18.5
6
30.6
17
400
6
PRA_ETCYP_08G38
8
3/8
25.9
14.4
18.5
10
34.6
21
400
6
Tube connector Ø 10 mm
PRA_ETCYP_10G12
10
1/2
29.8
17.6
21
12
34.8
24
300
7.5
PRA_ETCYP_10G38
10
3/8
29.8
17.6
21
10
33.3
22
300
7.5
Tube connector Ø 12 mm
PRA_ETCYP_12G12
12
1/2
32.7
21
22.5
12
37.5
24
250
9
PRA_ETCYP_12G38
12
3/8
32.7
21
22.5
10
40.5
24
250
9


* dimensions in mm
