Connection plate for aluminium profile
Delivery throughout Europe
Secure payment
English speaker +33535565788

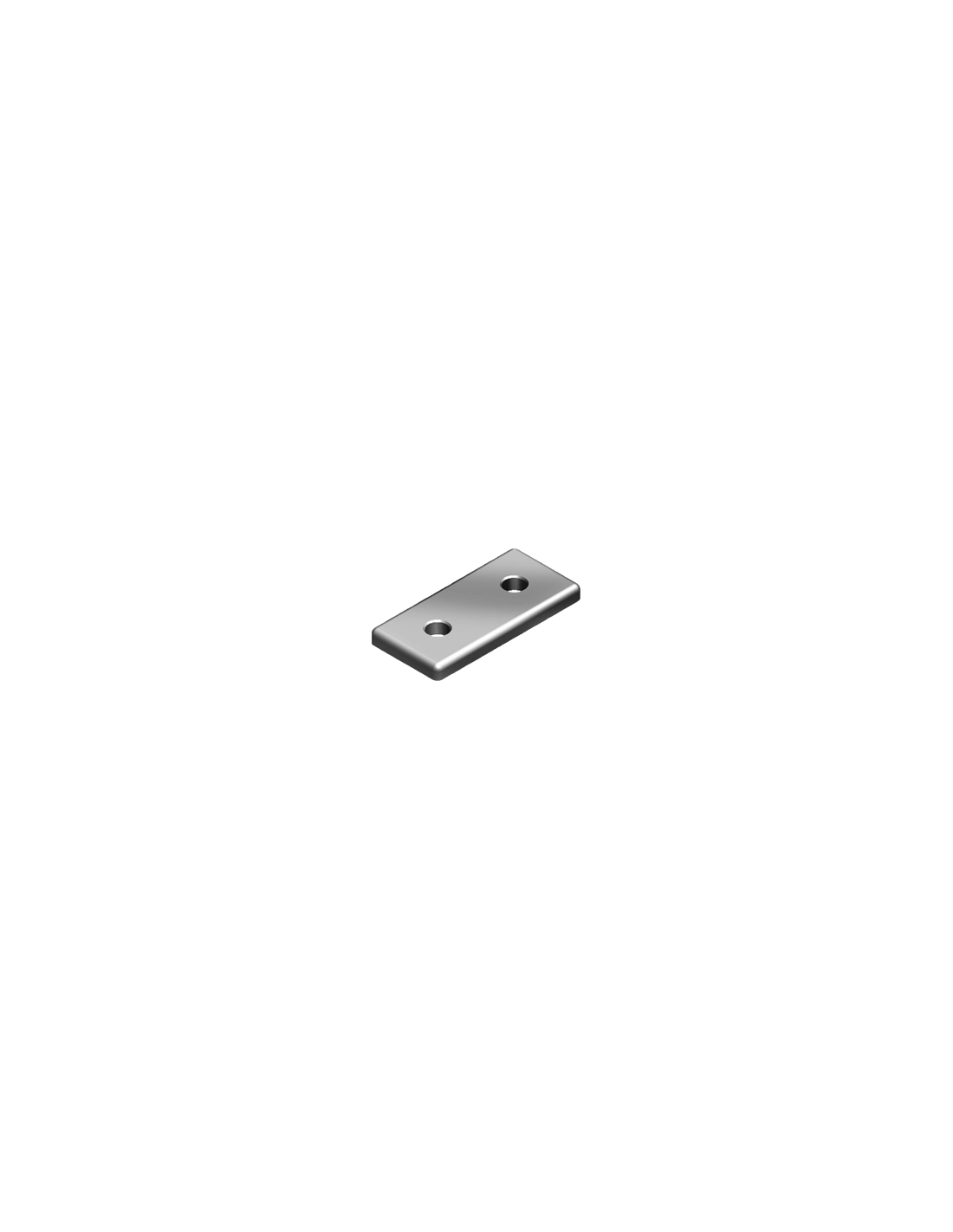

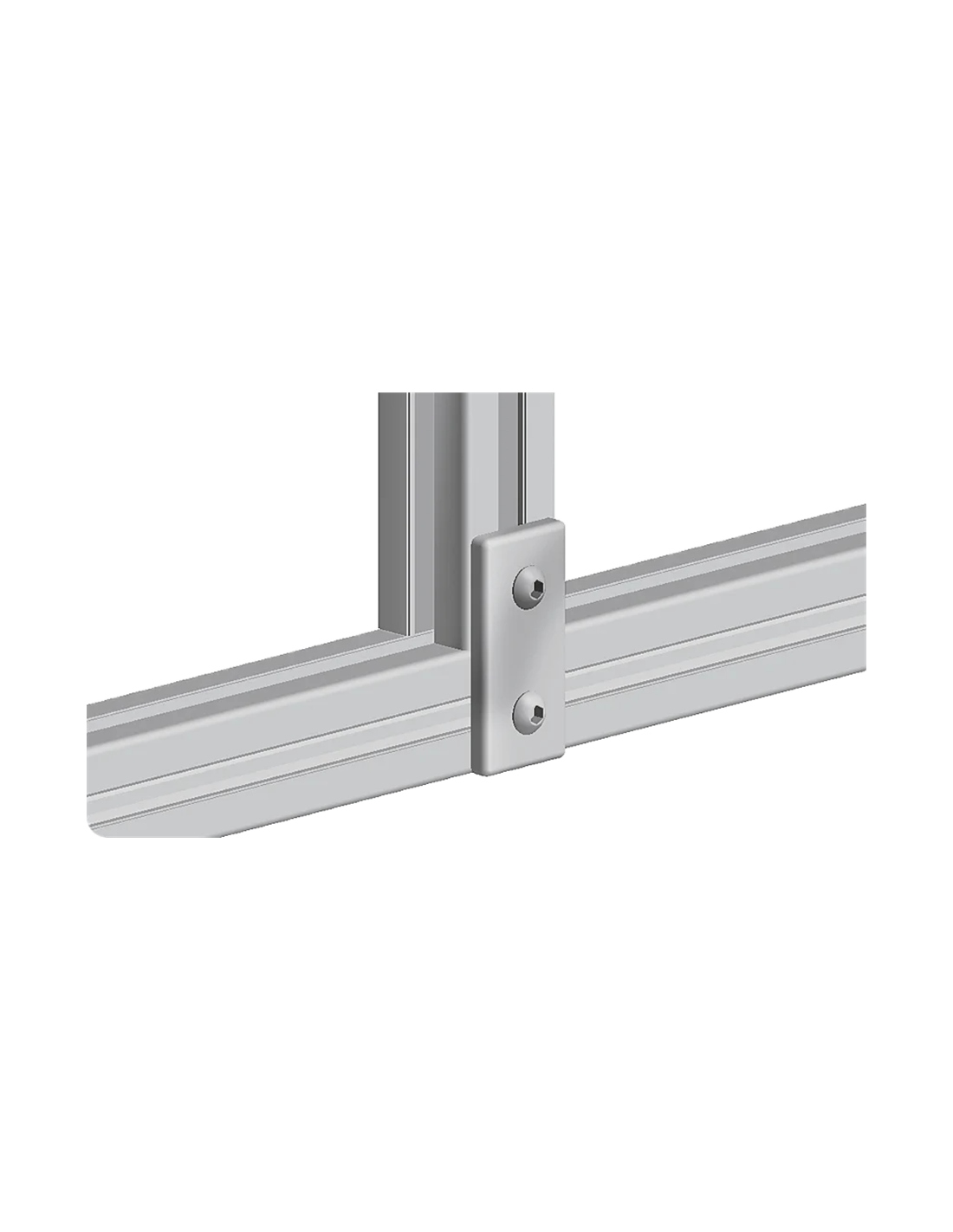

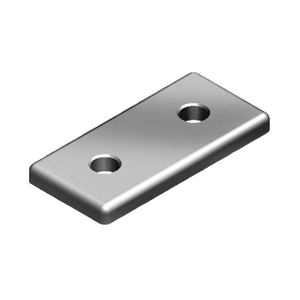

Rectangular connection plate for connecting or extending aluminium profiles.
For assembling in slots with hammer nuts or standard t-slot nuts for more resistance.
Plate 2x1
Plate 4x1
Plate 4x2
Material: aluminium RAL 9006
 |
 |
 |
 |
| Reference | Slot | Size (mm) | Ø D | L (mm) | H (mm) | A (mm) | B (mm) |
| 2x1 | |||||||
| TAPL8_L2X1_30D7 | 8 | 30x60 | 7 (2x) | 57 | 5 | 30 | 27 |
| TAPL10_L2X1_40D9 | 10 | 40x80 | 9 (2x) | 76 | 6 | 40 | 36 |
| TAPL10_L2X1_45D9 | 10 | 45x90 | 9 (2x) | 86 | 6 | 45 | 41 |
| 3x1 | |||||||
| TAPL8_L3X1_30D9 | 8 | 30x90 | M6 (3x) | 90 | 4 | 2x30 | 30 |
| 4x1 | |||||||
| TAPL8_L4X1_30D7 | 8 | 30x120 | 7 (4x) | 117 | 5 | 30 | 27 |
| TAPL10_L4X1_40D9 | 10 | 40x160 | 9 (4x) | 156 | 6 | 40 | 36 |
| TAPL10_L4X1_45D9 | 10 | 45x180 | 9 (4x) | 176 | 6 | 45 | 41 |
| 4x2 | |||||||
| TAPL8_L4X2_60D7 | 8 | 60x120 | 7 (8x) | 117 | 5 | 30 | 57 |
| TAPL10_L4X2_40D5 | 10 | 40x80 | 5.5 (8x) | 76 | 4 | 20 | 36 |
| TAPL10_L4X2_80D9 | 10 | 80x160 | 9 (8x) | 156 | 6 | 40 | 76 |
| TAPL10_L4X2_90D9 | 10 | 90x180 | 9 (8x) | 176 | 6 | 45 | 86 |
* dimensions are in mm.
