Cover cap for angle
Cover cap for angle
  • -5%
Cover cap for angle
Cover cap for angle

Cover cap for angle

Cover cap for aluminium profile

Type of profile
TABCH_EQU_20X20
€0.40 -5%
From €0.38 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788

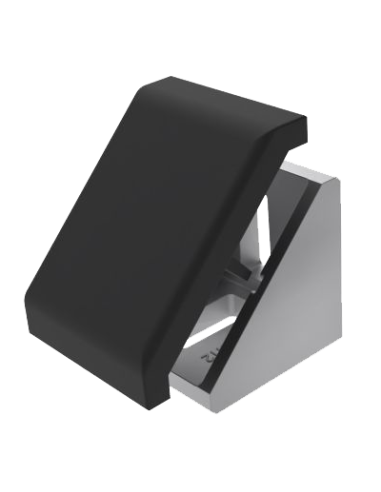

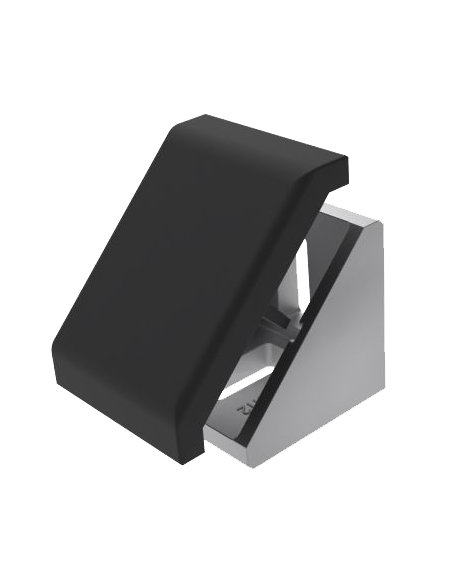

Black cover cap for angle in PA plastic recovering mounting brackets.
It improves the aesthetic of your mountings and enables to connect two aluminium profiles right-angled corner.


schéma explicatif pour bouchon d'équerre TABCH_EQU_XXschéma explicatif avec côtes pour bouchon d'équerre TABCH_EQU_XX

References
Dimensions
A
B
C

[mm]

TABCH_EQU_20X20
  20x20
21
14.5
19.5
TABCH_EQU_30X30
 30x30
32
23
29
TABCH_EQU_40X40
 40x40
41.5
29.5
36.5
TABCH_EQU_45X45
 45x45
46.5
35
39.5
TABCH_EQU_60x60
  60x60
62.3
44.5
51.5
TABCH_EQU_80x80
  80x80
82.50
58.5
65
TABCH_EQU_90X90
90x90
94.5
67
75

TABCH_EQU_20X40
20x40
41
28.5
32
TABCH_EQU_30X60
30x60
61
44
49
TABCH_EQU_40X80
40x80
80
59
64
TABCH_EQU_45X90
45x90
90
67
72

Documentation

documentation technic-achat Technical datasheet TABCH_EQU_20X20
documentation technic-achat Technical datasheet TABCH_EQU_30X30
documentation technic-achat Technical datasheet TABCH_EQU_40X40
documentation technic-achat Technical datasheet TABCH_EQU_45X45
documentation technic-achat Technical datasheet TABCH_EQU_60x60
documentation technic-achat Technical datasheet TABCH_EQU_80x80
documentation technic-achat Technical datasheet TABCH_EQU_90X90
documentation technic-achat Technical datasheet TABCH_EQU_20X40
documentation technic-achat Technical datasheet TABCH_EQU_30X60
documentation technic-achat Technical datasheet TABCH_EQU_40X80
documentation technic-achat Technical datasheet TABCH_EQU_45X90

Softwares & 3D

fichier 3D technic-achatTABCH_EQU_20X20
fichier 3D technic-achatTABCH_EQU_30X30
fichier 3D technic-achatTABCH_EQU_40X40
fichier 3D technic-achatTABCH_EQU_45X45
fichier 3D technic-achatTABCH_EQU_60x60
fichier 3D technic-achatTABCH_EQU_80x80
fichier 3D technic-achatTABCH_EQU_90X90
fichier 3D technic-achatTABCH_EQU_20X40
fichier 3D technic-achatTABCH_EQU_30X60
fichier 3D technic-achatTABCH_EQU_40X80
fichier 3D technic-achatTABCH_EQU_45X90

Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects


 image explicative pour bouchon d'équerre, fermé par un couvercle
