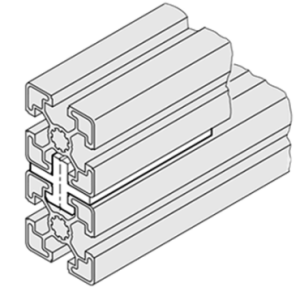

The slider center enables to slide two profiles over each other.
The asymmetrical slider enables to slide two profiles of the same cross-section in parallel.
It is preferred over other slides for sliding a frame in another closed frame.
The backlash caused by the square side offers an optimal guidance and the material of the slider guarantees a low wear.
Two mounting solutions:
- block the guiding slider between two standard sliders or two quarter turn nuts
- screw the slider to the profile with allen set screws
Possible uses: manual trolley, sliding or relevable doors or even extensions for drawers...
Material: Plastic POM
* Think about mounting accessories for the slider to the profile.
Reference
Designation
N
A
B
C
D
E
[mm]
TAGLB10C
Slider R10 Centered
10
27.6
39
6.5
19
3.5
TAGLB10A
Slider R10 Asymmetrical
10
27.6
39
6.5
19
3.5
