Profile support for manual linear roller guide rail
Profile support for manual linear roller guide rail
  • -5%
Profile support for manual linear roller guide rail
Profile support for manual linear roller guide rail

Profile support for manual linear roller guide rail

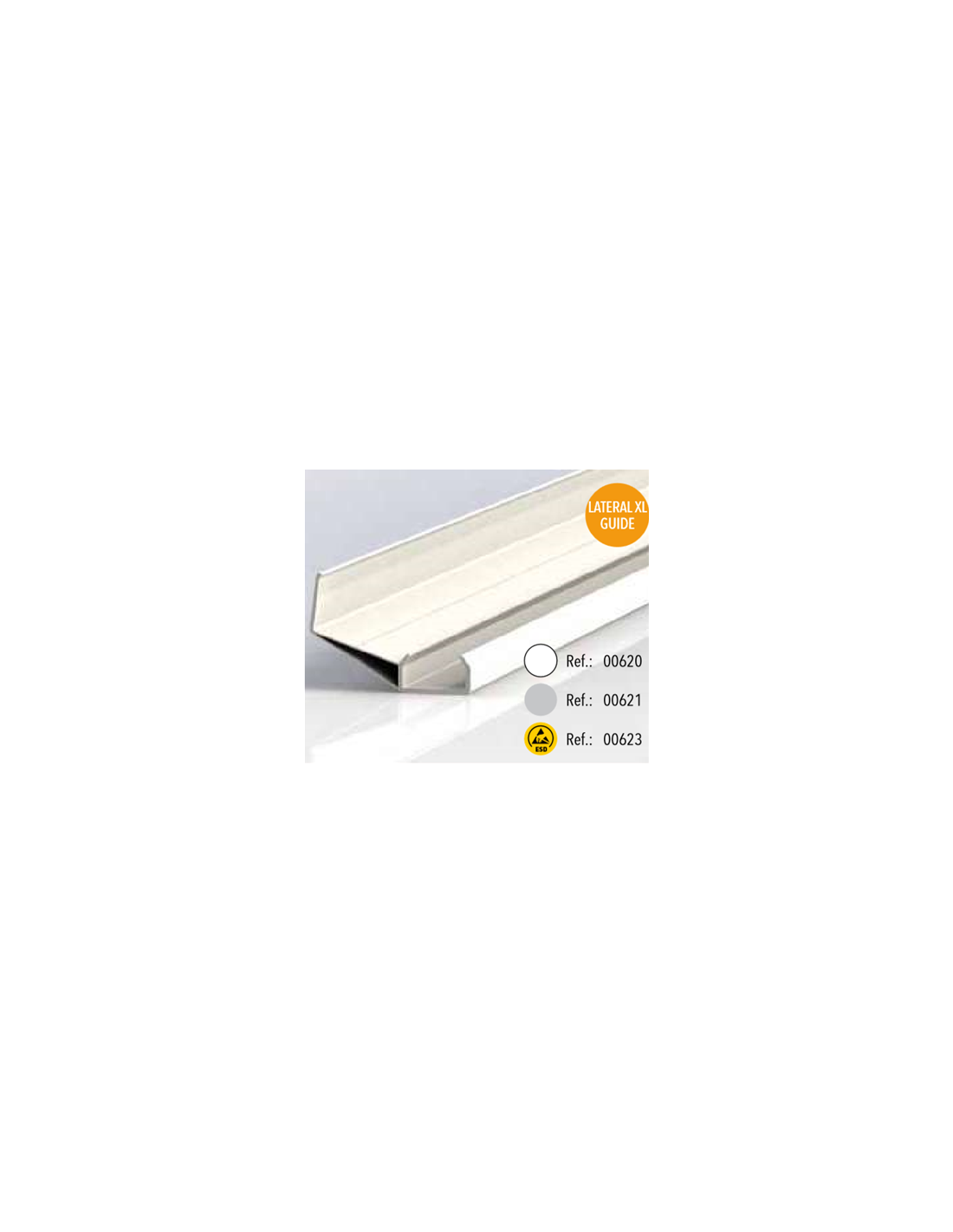

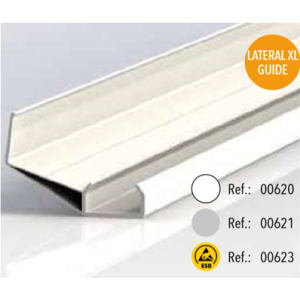

Ø28 profile support for manual linear roller guide rail with framing edge  L= 3000mm

Select your rail
TAGLM_RAI_PRO
€32.48 -5%
From €30.86 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788


Manual linear roller guide rail:
Characteristics:
-Extruded plastic profile
-Maximum bar length of 3000mm (up to 4500mm upon request)
-Products weight:
       -Central: 0.485 kg/m - ESD: 0.430 kg/m
       -Lateral M: 0.497 kg/m - ESD: 0.407 kg/m
       -Lateral XL: 0.572 kg/m - ESD: 0.469 kg/m
-Colour: grey
-Lateral flange position:
       -Lateral M: 15mm from the wheel caster's edge
       -Lateral XL: 50mm from the wheel caster's edge

Reference
Description
Colour
Length
Diagram
TAGLM_RAI_PRO
Ø28 profile support for manual linear roller guide rail with framing edge  L= 3000mm
Grey
3000mm
plan rail guidage à galets

Documentation

documentation technic-achat Technical document

Softwares & 3D

fichier 3D technic-achat3D File


Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects
