Detachable concealed hinge component + screws
Detachable metal hinges + screws | EASI-Spare
  • -5%
Detachable concealed hinge component + screws
Detachable metal hinges + screws | EASI-Spare

Detachable concealed hinge component + screws

Detachable concealed metal hinge component + screws

More
Select your hinge
TACHA_DEG_M30_2T
€4.48 -5%
From €4.26 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



    • For mounting heavy doors and in a large size
    • Detachable
    • For stop on the left or on the right
    • Careful, to make a hinge, you need to order: 2 split hinges + 1 hinge pin + 2 caps
    • Sales unit: 1 pcs + fixing set

Reference
Diagram dimensions
[mm]

A
B
C
Doc.
3D
File
Hinge


TACHA_DEG_M30_2T


30


19.5


32


Ø6.4




TACHA_DEG_M40_2T


40


25


42


Ø6.4




TACHA_DEG_M45_2T


45


27


47


Ø6.4


External hinge


TACHA_DEG_M30_2TD


30


15.2


27.7


Ø6.4




TACHA_DEG_M40_2TD


40


20.2


37.7


Ø6.4




TACHA_DEG_M45_2TD


45


22.7


42.7


Ø6.4


Hinge pin for metal hinge
TACHA_DEG_GOND
Detachable hinge pin for metal hinge

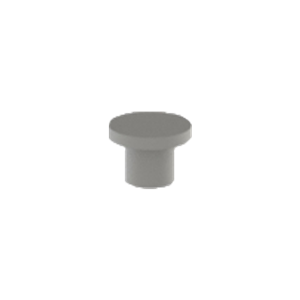

Cap for metal hinge
TACHA_DEG_BCH
Cap for detachable metal hinge
