Window support quarter turn mounting
Glass support for hammer nut mounting for plate | EASI-Spare

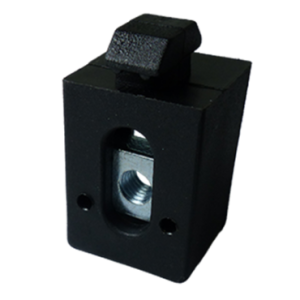

Glass support for hammer nut

To attach panels easily to aluminum profiles

More
Select a reference
TASUPV6M4
€1.28 -5%
From €1.22 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



The glass support enables to mount surfaces on a mounted frame with little backlash.

Threaded nut of the glass support slides inside the element for a better setting quality and the choice of thread enables to use screws almost invisible when the structure is assembled.

Easy and fast mounting to the profile via hammer nut moulded to the support.

Using strut enables to compensate the thickness of the plate
to secure it with less flush on the structure.

Material: Black plastic PA
*screws for mounting plate are not supplied

Reference
Dimensions
A1
A2
N
Slot
Thread
Doc.
3D
File



TASUPV6M4



7.0



2.7



6mm



M4






fichier 3d vis support vitre fixation




TASUPV8M5



7.0



1.9



8mm



M5




fichier 3d vis support vitre fixation



TASUPV8M6



7.0



1.9



8mm



M6




fichier 3d vis support vitre fixation
-



TASUPV10M5



8.5



5.7



10mm



M5




fichier 3d vis support vitre fixation



TASUPV10M6



8.5



5.7



10mm



M6






fichier 3d vis support vitre fixation



TASUPV10M5_ANG



8.5



5.7



10mm



M5






fichier 3d vis support vitre fixation



TASUPV8_VARIO_M5



9.5/12*/12.5/15*



2.2



8mm



M5






fichier 3d vis support vitre fixation
-
TASUPV_ENT_2

Strut for glass support thickness D=2mm
fichier 3d vis support vitre fixation



TASUPV_ENT_3


Strut for glass support thickness D=3mm




fichier 3d vis support vitre fixation
TASUPV_ENT_5

Strut for glass support thickness D=5mm
fichier 3d vis support vitre fixation
