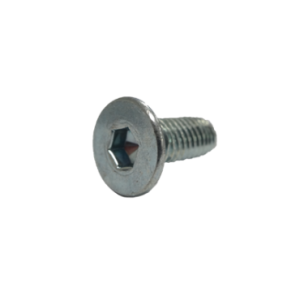

FHC screw DIN-7991 galvanised steel
Galvanised steel FHC screws
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Characteristics:
-Product category A.
-Tolerance class ISO 4759.
-Mechanical characteristics according to ISO 898/1
Class/Material: 10.9
UNI: 5933
Family: 14961
DIN: 7991
ISO: 10642
DIN and UNI standards are supposed to be identical, whereas ISO standard has a significant change in dk-k-l. Berardi generally supplies products that follow DIN/UNI standards. The table refers to DIN standard.
Reference
d x L
dk
k
s
L
Thread
Packing
M4
VIS_FHC_M4X08_ACG100
M4 x 08
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X10_ACG100
M4 x 10
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X12_ACG100
M4 x 12
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X14_ACG100
M4 x 14
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X16_ACG100
M4 x 16
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X18_ACG100
M4 x 18
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X20_ACG100
M4 x 20
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X25_ACG100
M4 x 25
8
2.3
2.5
TF
0.7
100
VIS_FHC_M4X30_ACG100
M4 x 30
8
2.3
2.5
14
0.7
100
VIS_FHC_M4X40_ACG100
M4 x 40
8
2.3
2.5
14
0.7
100
M5
VIS_FHC_M5X06_ACG100
M5 x 06
10
2.8
3
TF
0.8
100
VIS_FHC_M5X10_ACG100
M5 x 10
10
2.8
3
TF
0.8
100
VIS_FHC_M5X12_ACG100
M5 x 12
10
2.8
3
TF
0.8
100
VIS_FHC_M5X16_ACG100
M5 x 16
10
2.8
3
TF
0.8
100
VIS_FHC_M5X20_ACG100
M5 x 20
10
2.8
3
TF
0.8
100
VIS_FHC_M5X25_ACG100
M5 x 25
10
2.8
3
TF
0.8
100
VIS_FHC_M5X30_ACG100
M5 x 30
10
2.8
3
TF
0.8
100
VIS_FHC_M5X35_ACG100
M5 x 35
10
2.8
3
TF
0.8
100
VIS_FHC_M5X40_ACG100
M5 x 40
10
2.8
3
16
0.8
100
M6
VIS_FHC_M6X10_ACG100
M6 x 10
12
3.3
4
TF
1
100
VIS_FHC_M6X12_ACG100
M6 x 12
12
3.3
4
TF
1
100
VIS_FHC_M6X16_ACG100
M6 x 16
12
3.3
4
TF
1
100
VIS_FHC_M6X20_ACG100
M6 x 20
12
3.3
4
TF
1
100
VIS_FHC_M6X25_ACG100
M6 x 25
12
3.3
4
TF
1
100
VIS_FHC_M6X30_ACG100
M6 x 30
12
3.3
4
TF
1
100
VIS_FHC_M6X35_ACG100
M6 x 35
12
3.3
4
TF
1
100
VIS_FHC_M6X40_ACG100
M6 x 40
12
3.3
4
18
1
100
M8
VIS_FHC_M8X10_ACG100
M8 x 10
16
4.4
5
TF
1.25
100
VIS_FHC_M8X12_ACG100
M8 x 12
16
4.4
5
TF
1.25
100
VIS_FHC_M8X16_ACG100
M8 x 16
16
4.4
5
TF
1.25
100
VIS_FHC_M8X20_ACG100
M8 x 20
16
4.4
5
TF
1.25
100
VIS_FHC_M8X25_ACG100
M8 x 25
16
4.4
5
TF
1.25
100
VIS_FHC_M8X30_ACG100
M8 x 30
16
4.4
5
TF
1.25
100
VIS_FHC_M8X35_ACG100
M8 x 35
16
4.4
5
TF
1.25
100
VIS_FHC_M8X40_ACG100
M8 x 40
16
4.4
5
TF
1.25
100
Dimensions above apply to fully threaded rod.
