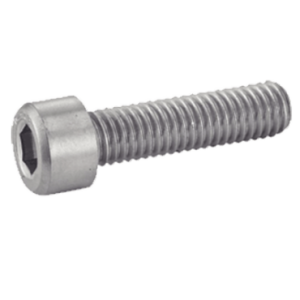

Hexagonal cylindrical head socket CHC screws in stainless steel DIN 912
Hexagonal cylindrical head socket CHC screws in stainless steel
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Characteristics:
- Hexagonal cylindrical head socket screw
-Product category A up to M24, then, product becomes category B
-Tolerance class ISO 4759
-Mechanical characteristics according to ISO 3506/1
Class/Material: STAINLESS STEEL A2
Family: 10661
DIN: 912
ISO: 4762
The three standards are not exactly identical. In most cases, the small differences enable them to be used interchangeably (particulary regarding tolerance class).
| Reference | dxl | dk | k | s | B | Lead | Packing |
| M3 | |||||||
| VIX_CHC_M3X06_INX100 | M3 x 6 | 5.5 | 2 | 2 | 0.5 | 100 | |
| VIX_CHC_M3X08_INX100 | M3 x 8 | 5.5 | 2 | 2 | 0.5 | 100 | |
| VIX_CHC_M3X10_INX100 | M3 x 10 | 5.5 | 2 | 2 | 0.5 | 100 | |
| VIX_CHC_M3X12_INX100 | M3 x 12 | 5.5 | 2 | 2 | 0.5 | 100 | |
| VIX_CHC_M3X16_INX100 | M3 x 16 | 5.5 | 2 | 2 | 0.5 | 100 | |
| VIX_CHC_M3X20_INX100 | M3 x 20 | 5.5 | 2 | 2 | 0.5 | 100 | |
| M4 | |||||||
| VIX_CHC_M4X10_INX100 | M4 x 10 | 7 | 4 | 3 | TF | 0.7 | 100 |
| VIX_CHC_M4X12_INX100 | M4 x 12 | 7 | 4 | 3 | TF | 0.7 | 100 |
| VIX_CHC_M4X16_INX100 | M4 x 16 | 7 | 4 | 3 | TF | 0.7 | 100 |
| VIX_CHC_M4X20_INX100 | M4 x 20 | 7 | 4 | 3 | TF | 0.7 | 100 |
| M5 | |||||||
| VIX_CHC_M5X10_INX100 | M5 x 10 | 8.5 | 5 | 4 | TF | 0.8 | 100 |
| VIX_CHC_M5X12_INX100 | M5 x 12 | 8.5 | 5 | 4 | TF | 0.8 | 100 |
| VIX_CHC_M5X16_INX100 | M5 x 16 | 8.5 | 5 | 4 | TF | 0.8 | 100 |
| VIX_CHC_M5X20_INX100 | M5 x 20 | 8.5 | 5 | 4 | TF | 0.8 | 100 |
| VIX_CHC_M5X30_INX100 | M5 x 30 | 8.5 | 5 | 4 | TF | 0.8 | 100 |
| M6 | |||||||
| VIX_CHC_M6X10_INX100 | M6 x 10 | 10 | 6 | 5 | TF | 1 | 100 |
| VIX_CHC_M6X12_INX100 | M6 x 12 | 10 | 6 | 5 | TF | 1 | 100 |
| VIX_CHC_M6X16_INX100 | M6 x 16 | 10 | 6 | 5 | TF | 1 | 100 |
| VIX_CHC_M6X20_INX100 | M6 x 20 | 10 | 6 | 5 | TF | 1 | 100 |
| VIX_CHC_M6X25_INX100 | M6 x 25 | 10 | 6 | 5 | 24 | 1 | 100 |
| VIX_CHC_M6X40_INX100 | M6 x 40 | 10 | 6 | 5 | 24 | 1 | 100 |
| M8 | |||||||
| VIX_CHC_M8X10_INX100 | M8x10 | 13 | 8 | 6 | TF | 1.25 | 100 |
| VIX_CHC_M8X12_INX100 | M8x12 | 13 | 8 | 6 | TF | 1.25 | 100 |
| VIX_CHC_M8X16_INX100 | M8x16 | 13 | 8 | 6 | TF | 1.25 | 100 |
| VIX_CHC_M8X20_INX100 | M8x20 | 13 | 8 | 6 | TF | 1.25 | 100 |
| VIX_CHC_M8X25_INX100 | M8x25 | 13 | 8 | 6 | TF | 1.25 | 100 |
| M10 | |||||||
| VIX_CHC_M10X50_INX50 | M10x50 | 16 | 10 | 8 | 30 | 1.5 | 100 |
| M12 | |||||||
| VIX_CHC_M12X70_INX50 | M12x70 | 18 | 12 | 10 | 36 | 1.75 | 100 |
