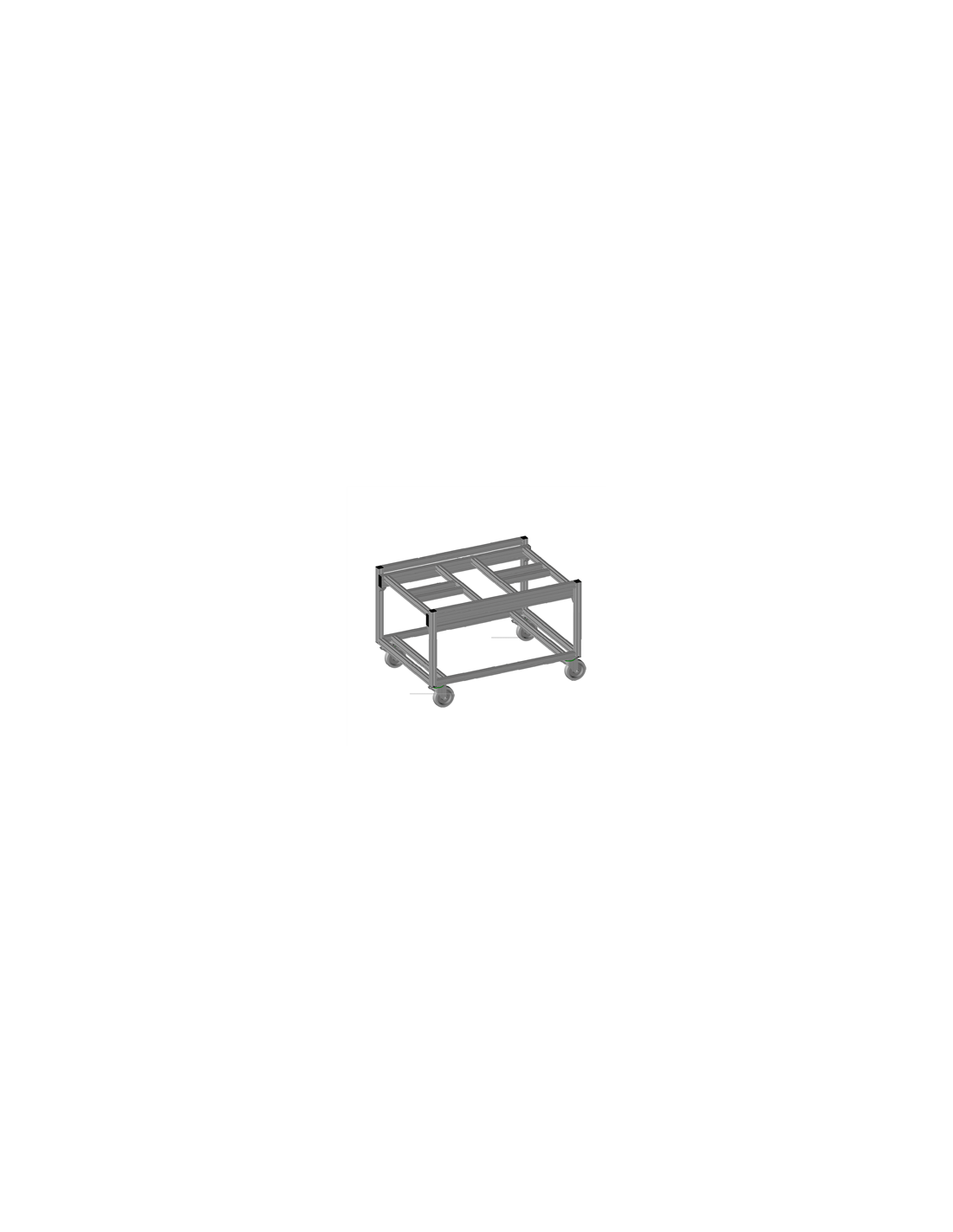

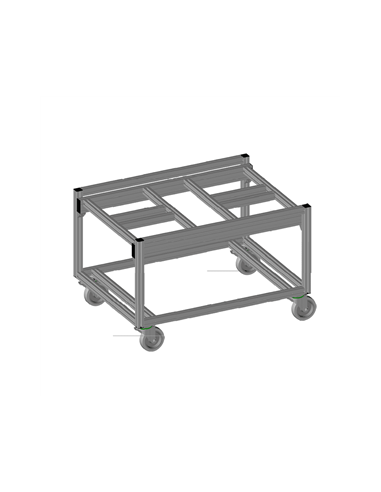

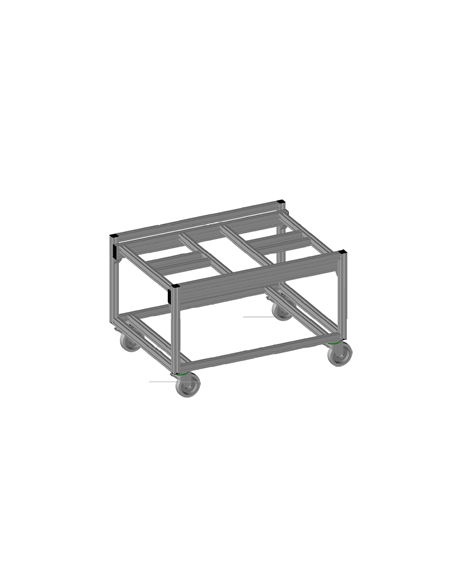

Pallet lifter chassis kit 1200x800
Pallet lifter chassis kit 1200x800
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Pallet lifter kit
Made with Aluneed TB aluminium profile, profile pallet lifter chassis helps to arrange workshops and workstations conveniently.
The pallet is at a reasonable height for experts to work in good conditions.
For European pallet, ½ pallet or ¼ pallet.
Dimensions (overall): 1200 (L) x 800 (D) x 900 (H) mm
Composition:
Chassis is made of 4 10mm slot 45x90L profile, support is made of 4 10mm slot 45x45L.
Wheels Ø160mm, 2 swivel wheels with brake and 2 swivel wheels without brake, 300Kg/wheel load.
Kit to mount on your own, we deliver the machined and assembled structure with instructions.
Characteristics:
- Chassis screw mounting M12x30, the pallet support frame needs to be mounted with a bracket for adjustment.
- Maximum load 1000kg.
- Reference: ALD_REHAUPAL_12080
*Optional mounting on request
For any request about chassis dimensions, call us on 05 57 99 01 72 or let us know about your project via email contact@easi-spare.com.
