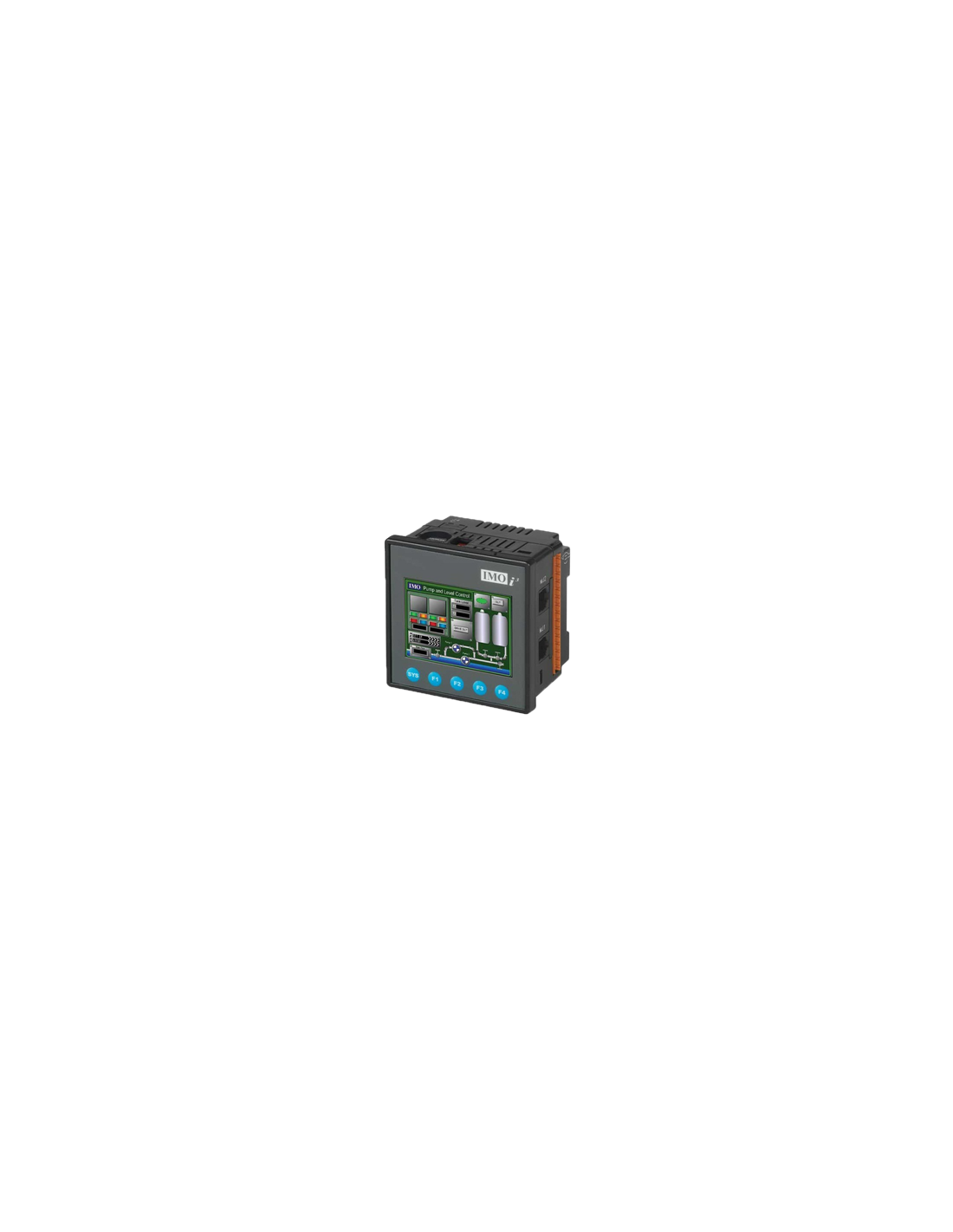

Mini-intelligent control station IMO I3CM colour touchscreen

Intelligent station IMO I3 with colour touchscreen

Automation system inputs

Automation system outputs

Reference I3CM12Y10D03SEHF

Last items in stock

€688.98 -5%
€654.53 Excl. tax

Programmable intelligent station all integrated: Human-Machine Interface and communication bus in the same box.
- Display QVGA 320x240.
- Touchscreen 3.5" high resolution 65535 colours.
- Supply 10-30VDC.
- 1 CAN port, 1 RS232 / RS485 port.
- Full Ethernet port, WEB server integrated RMI
- Up to 24 digital inputs and 6 analogue inputs (internal) + extension module.
- Up to 16 digital outputs and 4 analogue outputs (internal) + extension module.
- Expandable SD card up to 32Go.
- Expandable Inputs/Outputs.
- Real time clock.
- Operating temperature: -10°C to +60°C.
- free programming software, ON-LINE programme.

I3CM12Y....

Dig.
Inputs
(DC In)

Transistor on-off controller Outputs
(DC Out)

Relay on-off controller Output
(Relays)

Fast
Inputs
(HS In)

Fast
Outputs
(PWM)

Ana. Inputs
4-20 mA/0-10 V

Ana. Inputs
4-20 mA/0-10 V
PT100

Ana. Outputs

Doc

10D03-SEHF

4 (12 Bits)

13C14-SEHF

2 (14 Bits)

2 ( 12Bits)

20B05-SEHF

2 (12 Bits)

10B04-SEHF

2 (12 Bits)

10E24-SEHF

6 (14/17 Bits)

4 (12 Bits)

Documentation

documentation technic-achat Technical datasheet
User Manual
Web server I3RMI
Tutorial basic operation
Programming manual IEC et I3CM

Certificates

certificat technic-achat CE Certificate

Softwares & 3D

Online support

aide en ligne Technic-Achat Programme I3 application example
Using an intelligent station remotely
Reliable user server communication with Ethernet/IP protocol

Videos

Combinations	Automation system inputs	Automation system outputs	Reference	Stock	Price	Add to cart
Automation system inputs : 12 Di +6 Ana Automation system outputs : 12 Do +4 Ana Reference : I3CM12Y10E24SEHF Stock : 0	12 Di +6 Ana	12 Do +4 Ana	I3CM12Y10E24SEHF	Available later	€1,318.93 Tax excl. €1,252.98 Tax excl. - 5%	€1,318.93 Tax excl. €1,252.98 Tax excl. (- 5%)
Automation system inputs : 12 Di +2 Ana Automation system outputs : 12 Do+2 Ana Reference : I3CM12Y13C14SEHF Stock : 0	12 Di +2 Ana	12 Do+2 Ana	I3CM12Y13C14SEHF	Available later	€1,159.63 Tax excl. €1,101.65 Tax excl. - 5%	€1,159.63 Tax excl. €1,101.65 Tax excl. (- 5%)
Automation system inputs : 12 Di +2 Ana Automation system outputs : 12 Do Reference : I3CM12Y10B04SEHF Stock : 0	12 Di +2 Ana	12 Do	I3CM12Y10B04SEHF	Available later	€913.64 Tax excl. €867.96 Tax excl. - 5%	€913.64 Tax excl. €867.96 Tax excl. (- 5%)
Automation system inputs : 12 Di +4 Ana Automation system outputs : 6 Rel Reference : I3CM12Y10D03SEHF Stock : 1	12 Di +4 Ana	6 Rel	I3CM12Y10D03SEHF	Available now Stock : 1	€688.98 Tax excl. €654.53 Tax excl. - 5%	€688.98 Tax excl. €654.53 Tax excl. (- 5%)
Automation system inputs : 24 Di +2 Ana Automation system outputs : 16 Do Reference : I3CM12Y20B05SEHF Stock : 0	24 Di +2 Ana	16 Do	I3CM12Y20B05SEHF	Available later	€955.44 Tax excl. €907.67 Tax excl. - 5%	€955.44 Tax excl. €907.67 Tax excl. (- 5%)
Automation system inputs : No input Automation system outputs : No output Reference : I3CM12Y00000SEHF Stock : 0	No input	No output	I3CM12Y00000SEHF	Available later	€686.25 Tax excl. €651.94 Tax excl. - 5%	€686.25 Tax excl. €651.94 Tax excl. (- 5%)
